The camera widget allows you to display a static image from the camera on the Android device’s screen, which is updated at the interval specified in the settings (see Configuring the connection in AxxonNet client on Android OS).

Add a camera widget to the screen in the following way:

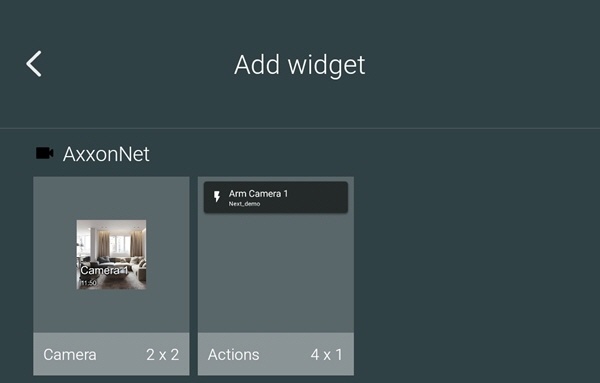

  1. Switch to the widget mode on the Android device and select the Camera widget from the AxxonNet widget group.

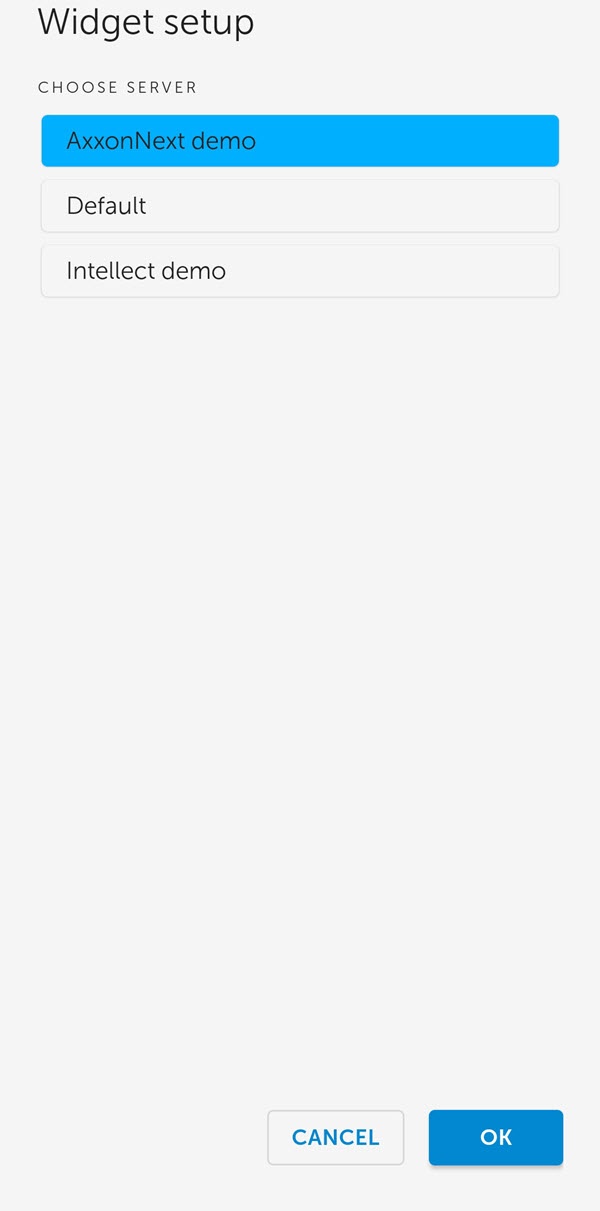

  2. From the list of available Servers, select the Server with the required camera.

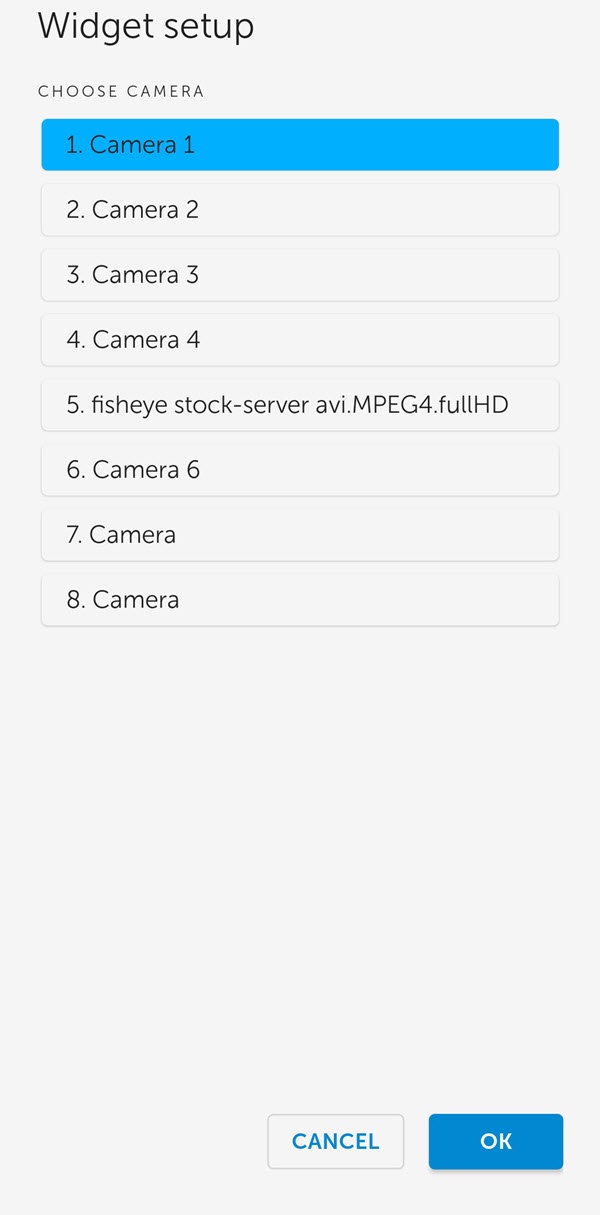

  3. From the list of available cameras, select the required camera, the image from which will be displayed on the widget.
  4. Set the location and size of the widget on the screen of the Android device.

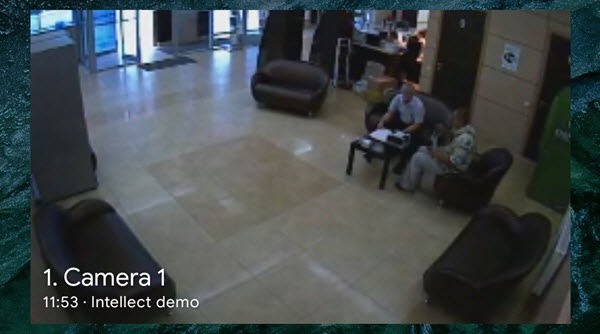

    The widget also displays the camera name and the time the image was last updated on top of the image, and if the Server is unavailable, a corresponding message.
    If you click on the image on the widget, you will be redirected to viewing the live video (see Viewing live video in AxxonNet client on Android OS).
