You can assign names to the table columns containing the vehicle LP numbers to be displayed in the Vehicle Tracer module interface window. The table columns will be displayed in this window if the search for a recognized license plate in the External Plates Database is successful.

To assign names to table columns, containing vehicle plates, do the following:

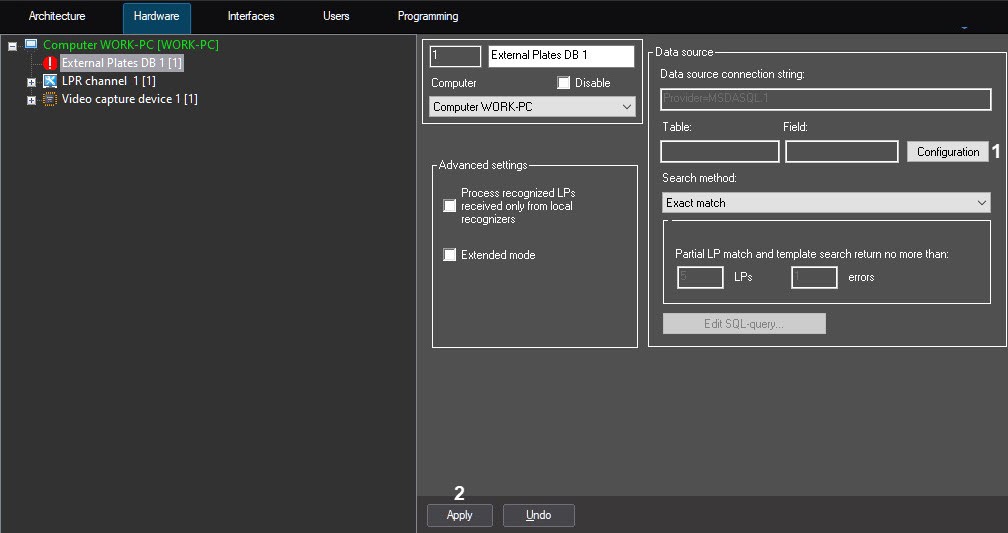

  1. Go to the External Plates DB object settings panel.
  2. Click the Configuration button (1).

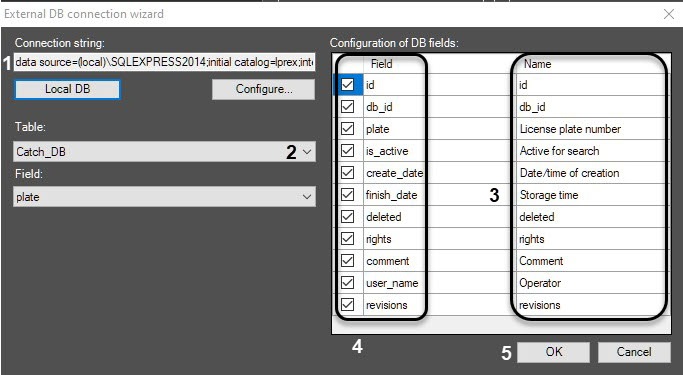

  3. External DB connection wizard will be displayed in result.
  4. Set the connection string to the External DB (1) (see External DB connection).
  5. From the Table drop-down list (2), select the table, containing vehicle plates. As a result, a list of columns in the selected table will be displayed in the Configuration of DB fields table (3).
  6. In the Name column (3), enter the names corresponding to columns that will be displayed in the Vehicle Tracer interface window.
  7. Set the check boxes for the strings (4) which fields should be displayed in the Vehicle Tracer interface window.

  8. Click OK (5) to save the applied changes and close the dialog window External DB connection wizard.

    Note.

    Click Cancel to close the window External DB connection wizard without saving the changes.

  9. Click Apply (2).

Assigning names to table columns, containing vehicle plates, is completed.
