The AR-Railway module object settings panel

The AR-Railway module object settings panel contains the following interface elements.

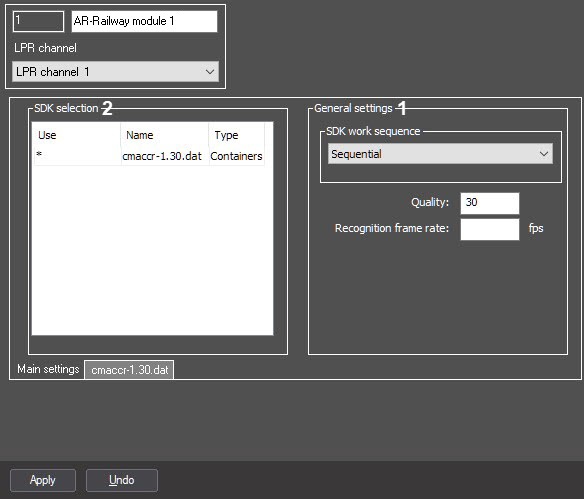

The Main settings tab:

The following table describes the elements of the AR-Railway module object settings panel.

№	Parameter name	Parameter setting method	Description	Data type	Default value	Value range
1	The General settings group
	SDK work sequence	Select the value from the list	Sets the work sequence of SDKs	-	Sequential	Sequential—the SDKs work sequentially Parallel—the SDKs work in parallel
	Quality	Enter the value in the text field	Sets the image quality of the carriage numbers, starting from which the numbers will be recognized. The value is determined experimentally	Percent	60	>=0
	Recognition frame rate, fps	Enter the value in the text field	Sets the number of the frames per second processed by the recognizer. If you enter 0 or leave the field blank, the recognizer will process the maximum possible number of frames	FPS	-	>=0
2	The SDK selection table
	Use	Click the mouse button	Determines if the corresponding SDK is going to be used for recognition	List	-	-
	Name	Automatically	The SDK name	List	-	-
	Type	Automatically	The SDK type of recognition	List	-	-

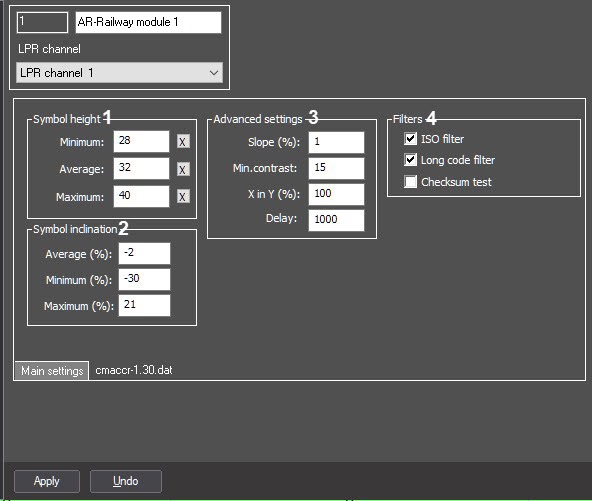

The SDK tab:

№	Parameter name	Parameter setting method	Description	Data type	Default value	Value range
1	The Symbol height group
	Minimum	Enter the value in the text field	Sets the minimum height of the carriage number symbol in the video image from the camera	Pixels	28	>=0
	Average	Enter the value in the text field	Sets the average height of the carriage number symbol in the video image from the camera	Pixels	32	>=0
	Maximum	Enter the value in the text field	Sets the maximum height of the carriage number symbol in the video image from the camera	Pixels	40	>=0
2	The Symbol inclination group
	Average (%)	Enter the value in the text field	Sets the average inclination of the symbol. The value is positive if the horizontal axis of the LP symbols is tilted down when viewed from left to right, and negative if this axis is tilted up	Percent	-2	<>=0
	Minimum (%)	Enter the value in the text field	Sets the minimum inclination of the symbol. The value is positive if the horizontal axis of the LP symbols is tilted down when viewed from left to right, and negative if this axis is tilted up	Percent	-30	<>=0
	Maximum (%)	Enter the value in the text field	Sets the maximum inclination of the symbol. The value is positive if the horizontal axis of the LP symbols is tilted down when viewed from left to right, and negative if this axis is tilted up	Percent	21	<>=0
3	The Advanced settings group
	Slope (%)	Enter the value in the text field	Sets the slope of the carriage number in relation to the video image received from the camera. The value is positive if the horizontal axis of the LP symbols is tilted down when viewed from left to right, and negative if this axis is tilted up	Percent	1	<>=0
	Min. contrast	Enter the value in the text field	Sets the estimated difference between the shades of gray of the LP symbols and the background	Shades of gray	15	>=0
	X in Y (%)	Enter the value in the text field	Sets the ratio of the horizontal and vertical symbol resolution. The horizontal resolution is the ratio of the symbol width on the video image to its actual width, and the vertical resolution is the ratio of the symbol height on the video image to its real height. If you enter zero or a negative value, then the value will automatically changed to 100	Percent	100	>=0
	Delay	Enter the value in the text field	Sets the time interval in milliseconds that should expire in order for the recognition module to display the next number recognition result. A value of zero means no delay	Milliseconds	1000	>=0
4	The Filters group
	ISO filter	Set the checkbox	Enables the ISO carriage numbers filtering. When reading a number that consists of 11 symbols, the recognition module will attempt to read the ISO code (examples of ISO codes: GB4310, 22G1)	-	Set	Set—the filtering is enabled Clear—the filtering is disabled
	Long code filter	Set the checkbox	Enables the long numbers filtering. If the video image does not contain the carriage number, but contains some other text, the recognition module can display a false carriage number. The long numbers filtering reduces the likelihood of the false codes appearing, increases the runtime (by about 5%), and degrades the recognition of the carriage codes on the images with a carriage code (by about 0.5%)	-	Set	Set—the filtering is enabled Clear—the filtering is disabled
	Checksum test	Set the checkbox	Enables the testing of the checksum of the numbers	-	Clear	Set—the testing is enabled Clear—the testing is disabled
