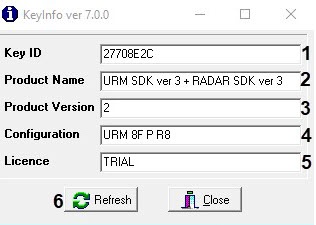

The KeyInfo.exe utility allows checking the configuration of the current Guardant hardware protection key. The following information is displayed in the utility window:

  1. The unique key identifier in the Key ID field (1).
  2. The product name in the Product Name field (2).
  3. The key version in the Product Version field (3).

  4. The key configuration in the Configuration field (4). Decryption of the main values that can be used in the license key:

    • URM − module name.

    • R − displays the maximum number of radars that can be connected to the AUTO-Uragan software module.

    • F − displays the maximum number of "fast traffic" lanes (for roads with free passage of vehicles, without checkpoints, barriers, etc.), on which you can configure LP number detection.

    • S − displays the maximum number of "slow traffic" lanes (for roads with limited traffic, with checkpoints, barriers, etc.), on which you can configure the LP number detection.

    • License for simultaneous work with different sizes. If there is the L symbol, then the key allows simultaneous operation of different sizes. If there is no L symbol, then the key allows the operation of only one standard size.

    • VS − displays the maximum number of lanes on which speed measurement by video is available.

    • P − pattern recognition of all countries. In older versions, there may be C1 − all countries except the countries of North and South America.

    • CAC − support for iris control.

    • PAD − support for fixing violations at the pedestrian crossing (not providing benefits to the pedestrian).

    • TL − support for fixing violations at the intersection (crossing the intersection on the red traffic light, leaving the stop line on the red traffic light).

    • VIOL − support for fixing violations of road marking and signs non-compliance.

    • AVS − support for fixing speeding violations on a road section.

    • WSD − support for determining the type of vehicle and detecting the windshield of the vehicle.

  5. The license type in the License field (5).
  6. To update the information displayed in the utility window, click the Refresh (6) button.
