The Analytics window

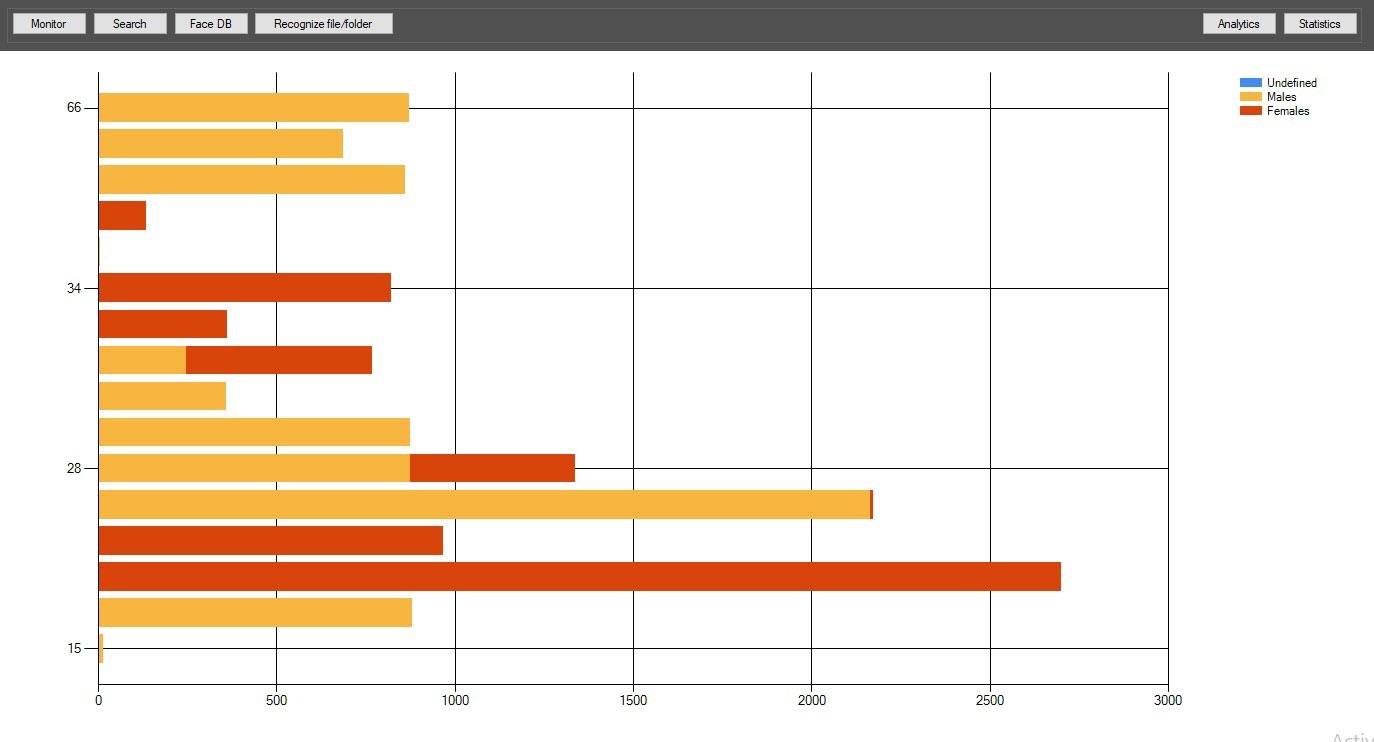

The following figure shows the Analytics window interface:

The components of the Analytics interface are described in the following table.

Component number	Comments
1	The elements for specifying the time period of the analysis.
2	Show faces drop-down list to select the captured persons display option: All, Only recognized, Only unrecognized.
3	The Accesses (min) and Accesses (max) fields for specifying the minimum and maximum number of passes of a person.
4	A Similarity, % field for specifying the similarity level between the captured face and the reference face in percent. If the specified value is exceeded, the person is considered as recognized.
5	A Filters button for specifying the filter.
6	A Refresh button for updating the displayed data.
7	A button for exporting the displayed analytical data to the report file.
8	The information panel for displaying the general data on all faces.
9	The diagram: the horizontal axis shows the total number of passes; the vertical axis shows the age of the detected faces.
10	The Image column displays the unique faces. Their quantity corresponds to the Unique faces parameter displayed in the section (8).
11	The area displayed the duplicates of the unique faces.

Note

Double left-click the diagram (9) to zoom it in, and double right-click it to zoom it out.
