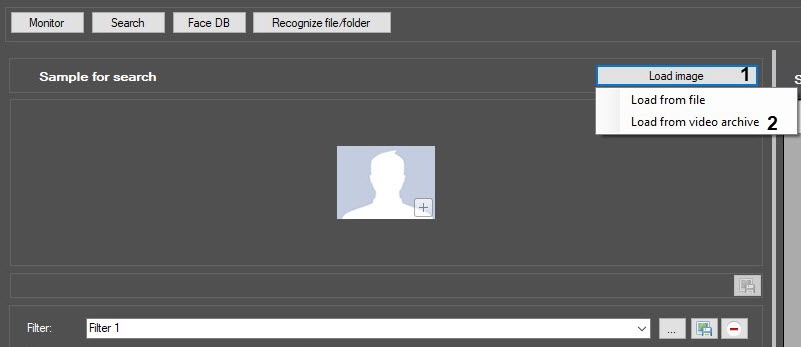

To upload an image from the video archive, click the Load image button (1) and select the Load from video archive value (2) from the list.

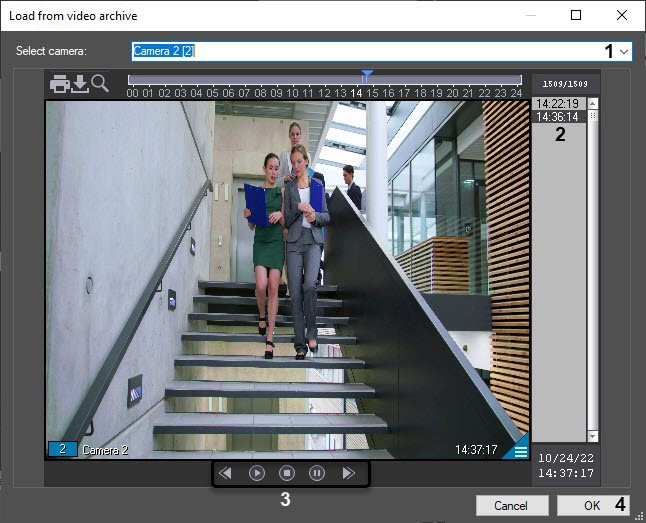

Window of capturing the image from the video archive will open.

  1. Select video camera from video archive in which it's necessary to capture the image (1).
  2. Select required video. To go to video records click left mouse button on the corresponding time marker (2).

  3. Select required video frame. Use playback control board for video frame selection (3).

    Note.

    button is for starting playback of selected video recording,  button stops playback.  and  buttons are used for going to video recording back and forth in playback mode and also for paging frames in pause mode. To go to pause mode button is used, button is used for restarting playback.

  4. Click the OK button (4).

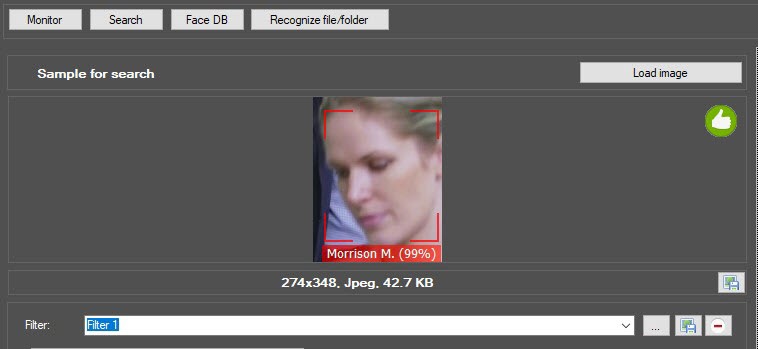

As a result the selected area is displayed in the Sample for search field on setting search conditions panel.

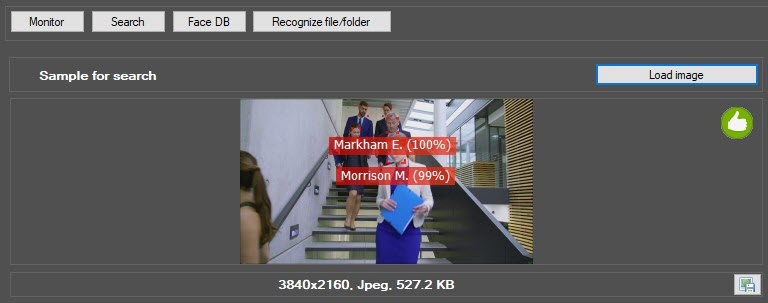

Several faces can be captured on the sample for search.

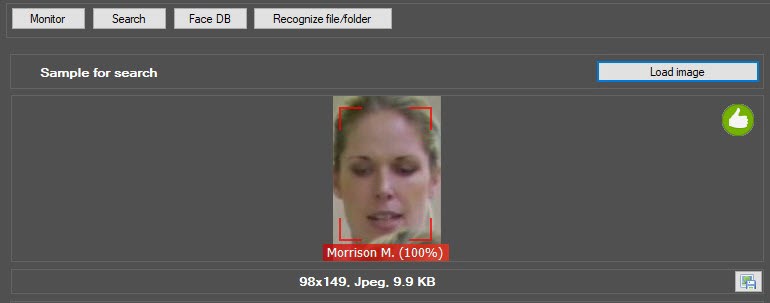

In this case, left-click the face which is required for the search.

Uploading image from the video archive is complete.
