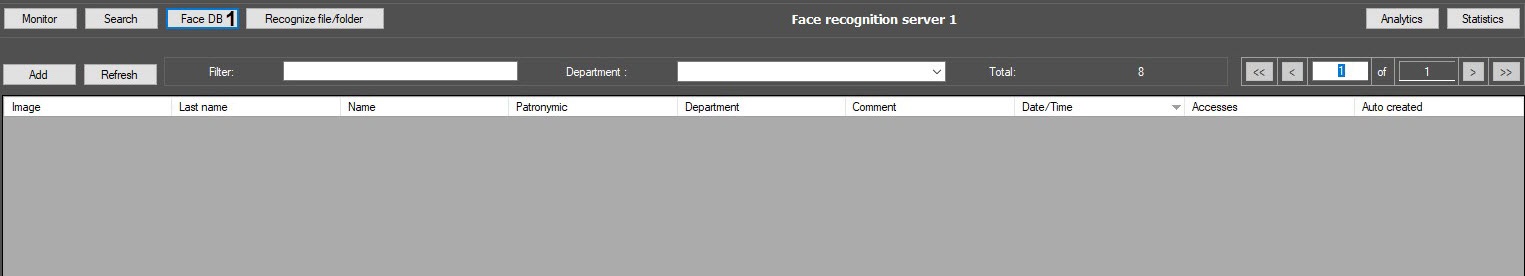

To go to the reference face database, click the Face DB button (1) in the Face recognition and search interface window.

The information on faces in the reference face database is displayed in the columns:

Column nameDescription
ImageReference face image
Last nameThe last name of the person on the image
NameThe first name of the person on the image
PatronymicThe patronymic name of the person on the image
DepartmentThe department of the person on the image
CommentThe comment
Date/TimeDate and time of adding a face to the reference face DB

Working with the reference face database is also possible with the help of the Access Manager module which is a part of ACFA PSIM (see Guide for configuring and working with the Access Manager integration module). Face PSIM interacts with the Access Manager module by means of the Face synchronization module (see Appendix 5. Face synchronization module).

The Face synchronization module allows to do the following:

  1. Create a face in the reference face database automatically, when a photo is assigned to a user in the Access Manager module.
  2. Change the image of the face in the reference face database automatically, when a user's photo is changed in the Access Manager module.
  3. Delete a face from the reference face database automatically, when a user’s photo is deleted from the Access Manager module.

Attention!

When creating a user in Axxon PSIM through Face recognition and search interface object (see Adding images to the reference face database), the correct synchronization of faces is not guaranteed.
