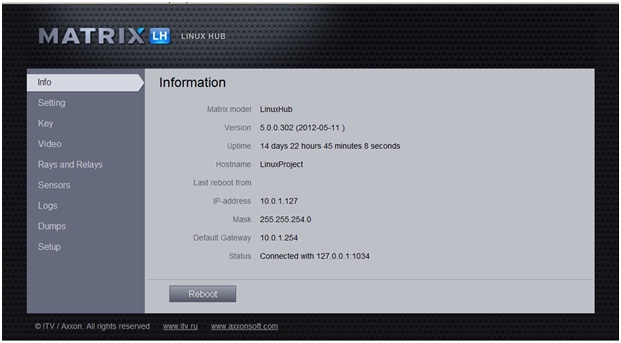

To access LS (LH) Web interface, specify the IP address of the required LS (LH) in the address line of the browser. The Web interface home page will be displayed.

The following information is displayed in the Info tab:

  1. The LS (LH) name;
  2. The LS (LH) firmware version;
  3. Running time since last LS (LH) reboot;
  4. NetBIOS name of LS (LH);
  5. IP address of the remote computer from which LS (LH) was last rebooted;
  6. IP address, subnet mask and default gateway of LS (LH).
  7. Status of LS (LH) connection to INTELLECT™.

The Reboot button is located below used for LS (LH) reboot. The The Matrix is restarting now message is displayed during the reboot.

Note

The browser is to support Java to work correctly with the Web interface.
