The Settings panel of the User permissions object

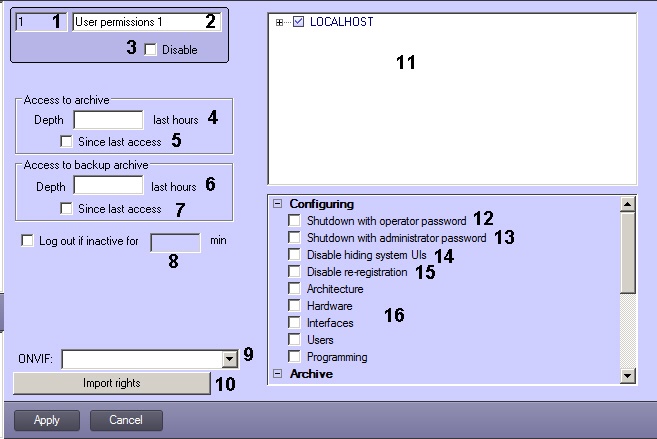

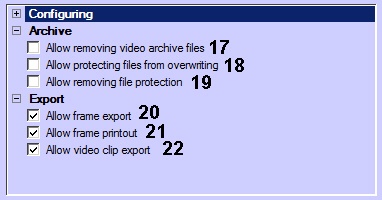

The settings panel of the User permissions object is shown in the figure.

Elements of the settings panel of the User permissions object are described in the table.

№	Parameter	Method for setting the parameter value	Parameter description	Symbols used	Default value	Value range
1	The ID field*	Automatically	Displays the identification number of the User permissions object in the system	Sequence of numbers	-	Depends on the number of the User permissions objects in the system.
2	The Name field*	Enter the value in the field	Sets the name of the User permissions object in the system	Latin, Cyrillic and service characters	User permissions	A line containing a sequence of any symbols (letters, digits, service characters apart from > and < symbols), not case-sensitive. Number of symbols – from 1 to 60.
3	The Disable checkbox	Set the checkbox	Defines the status of the User permissions object (enabled or disabled) in the system	Boolean type	No	Yes – the User permissions object is disabled and is not in use. No – the User permissions object is enabled and is in use.
The Access to archive group
4	The Depth __ last hours field	Enter the value in the field	Sets the number of last hours of video archive that can be viewed	Nonnegative integer	-	>=0 0 means that viewing the archive is prohibited
5	The Since last access checkbox	Set the checkbox	Sets the time to define the archive depth	Boolean type	No	Yes – hours available for viewing are counted since the User logged in No - hours available for viewing are counted since the current moment
The Access to backup archive group
6	The Depth __ last hours field	Enter the value in the field	Sets the number of last hours of backup archive that can be viewed	Nonnegative integer	-	>=0 0 means that viewing the backup archive is prohibited
7	The Since last access checkbox	Set the checkbox	Sets the time to define the backup archive depth	Boolean type	No	Yes – hours available for viewing are counted since the User logged in No - hours available for viewing are counted since the current moment
No group
8	The Log out if inactive for __ minutes checkbox and field	Set the checkbox, enter the value in the field	Sets the time period (in minutes) when the operator is inactive - at the end of this period the session is to be terminated	Boolean type, integer	No	Yes – when the operator is inactive for the specified time period, session is not automatically terminated. To continue operation, log in the system specifying the username and password. No – session is not automatically terminated when the operator is inactive.
9	The ONVIF dropdown list	Select the value in the list	Sets user rights to use the ONVIF Server	Supported types of permissions	-	Administrator Operator User
10	The Import rights button	Click the button	Configure import of user permissions settings from several other User permissions objects.	-	-	-
11	The list of system objects*	Automatically	Displays the objects created in the system and allows setting the administration and monitoring rights	-	-	-
The Configuring group
12	The Shutdown with operator password checkbox	Set the checkbox	Allows shutting down Intellect using the password of the authorized User	Boolean type	No	Yes – User with these rights is allowed to shut down Intellect No – User with these rights is not allowed to shut down Intellect
13	The Shutdown with administrator password checkbox	Set the checkbox	Allows shutting down Intellect using the password of the Administartor	Boolean type	No	Yes – Intellect shuts down only when the Administrator password is in use No - Intellect shuts down in various ways
14	The Disable hiding system UIs checkbox	Set the checkbox	Allows hiding interfaces in Intellect	Boolean type	No	Yes – interfaces cannot be hidden No – interfaces can be hidden
15	The Disable re-registration checkbox	Set the checkbox	Allows changing the user in Intellect	Boolean type	No	Yes – User can be changed No – User cannot be changed
16	The group of Tabs* checkboxes	Set the checkbox	Specifies the tabs of the System settings dialog box that can be accessed when the User gets the corresponding rights	Boolean type	All checkboxes are set unchecked	The following values are available for each tab: Yes – User is allowed to manage the objects in the tab. No – access to the tab is forbidden.
17	The Allow removing video archive files checkbox	Set the checkbox	Defines whether video archive files can be removed from the Monitor interface	Boolean type	No	Yes – The “Remove video from the feature menu” item is available in the Monitor No – removing video from the feature menu is not available
18	The Allow protecting files from overwriting checkbox	Set the checkbox	Sets possibility of rewrite protecting of files	Boolean type	Yes	Yes – operator added to these permissions can protect archive records against loop recording No – operator cannot protect archive records against loop recording
19	The Allow removing file protection checkbox	Set the checkbox	Sets possibility to disable rewrite protection of files	Boolean type	Yes	Yes – operator added to these permissions can reset rewrite protection of files No – Operator can't reset rewrite protection of files
20	The Allow frame export checkbox	Set the checkbox	Sets possibility to export archive frames	Boolean type	Yes	Yes – Operator added to these permissions can export video archive frames. No – Operator cannot export video archive frames.
21	The Allow frame printout checkbox	Set the checkbox	Sets possibility to print archive frames	Boolean type	Yes	Yes – Operator added to these permissions can print video archive frames. No – Operator cannot print video archive frames.
22	The Allow video clip export checkbox	Set the checkbox	Sets possibility to export video archive records	Boolean type	Yes	Yes – Operator added to these permissions can export video recordings. No – Operator cannot export video recordings.

* The name of the object is not displayed on the settings panel
