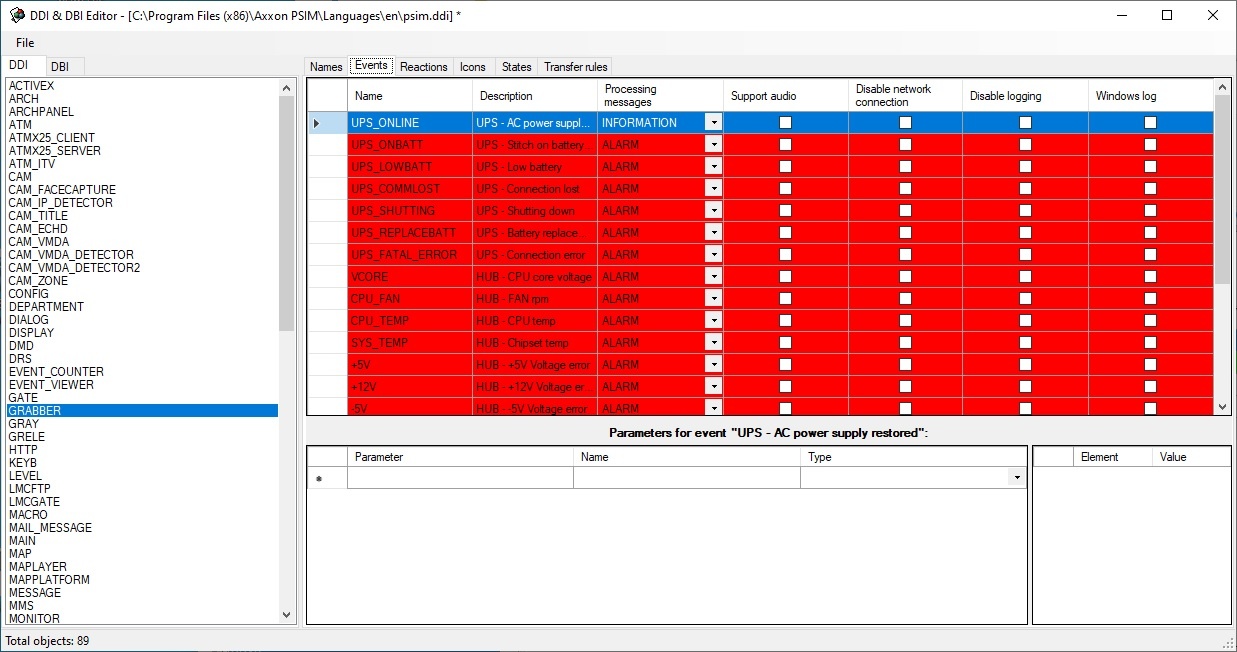

This tab contains the list of the system events that the selected object can create. Each event has the following editable parameters:

  1. Name. The event identifier.
  2. Description. A short description of the event.
  3. Processing messages. The type of window to open on event occurrence: alarm window or information window.
  4. Support audio. The attached .wav files to be played when the event occurs.
  5. Disable network connection. A local event only. If this checkbox is set, other computers on the network will not be notified when the event occurs.
  6. Disable logging. By default, all events are displayed in the Event log. Set the checkbox not to log the event or record it in the database.
  7. Windows log. Set the checkbox to log the event (see step 6) to Windows log. If the event is not logged, then it cannot be logged to Windows log.



Note

You can create only the events that are available for the selected object (created at the stage of the system programming). Initially all of them are in the psim.ddi file.
