To add MorphoAccess SIGMA Lite fingerprints in the Access Manager module, do the following:

  1. Go to adding biometric data in the Access Manager window (see Adding biometric parameters).
  2. Select the (MorphoLite) MorphoAccess SIGMA Lite extension that corresponds to the MorphoAccess SIGMA Lite terminal.

  3. The Operations on biometrics dialog box will open. To add a new fingerprint, click the Add fingerprints button.

    Note

    To delete all fingerprint templates, click the Delete all fingerprints button. This button is active if there are any previously added fingerprint templates.

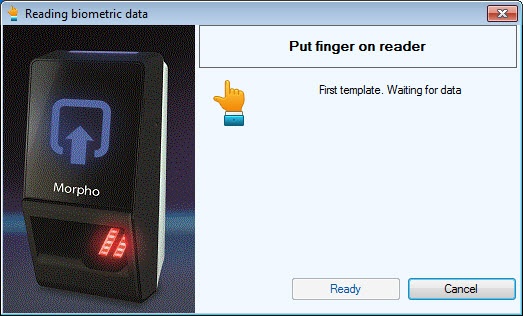

  4. The Reading biometric data dialog box will open.
  5. Place your finger on the controller three times and wait for the fingerprint scan to complete. The quality of the first fingerprint will be displayed in the area (1). Click Accept (2) to continue scanning two more fingers.



  6. In the same way, scan two more different fingers. To complete the fingerprint template creation, click the Ready button.

Creating the MorphoAccess SIGMA Lite fingerprint template is complete.
