You can appoint a user in charge of a region in the Access Manager software module.

To appoint a charge, do the following:

  1. Go to viewing a list of users (see Viewing a list of users).

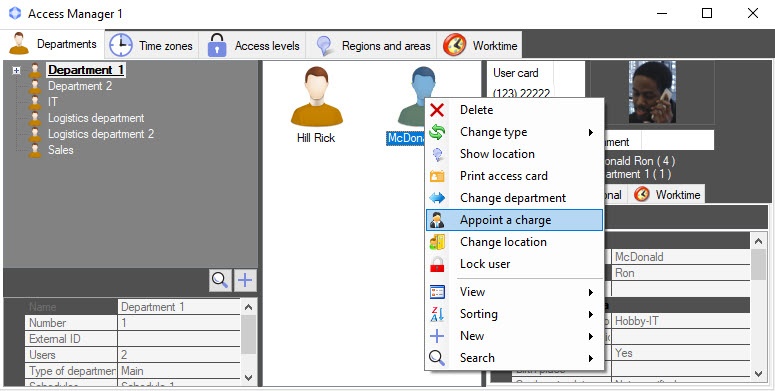

  2. Right-click the name of the required user and select the Appoint a charge item in the function menu.

    Note

    You can also select several users: for example, by selecting them with the mouse or by using keyboard shortcuts (see Keyboard shortcuts for working with interface elements).

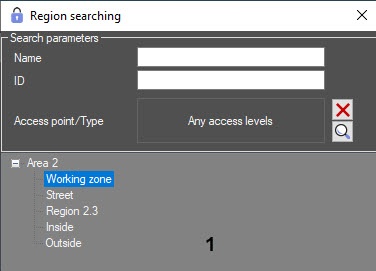

  3. In the Region searching window, select the required region.
  4. If necessary, specify the name of the required region in the Name field.
  5. If necessary, enter the identifier of the required region in the ID field.
  6. If necessary, specify a list of access points that must be included in the required region, as follows:

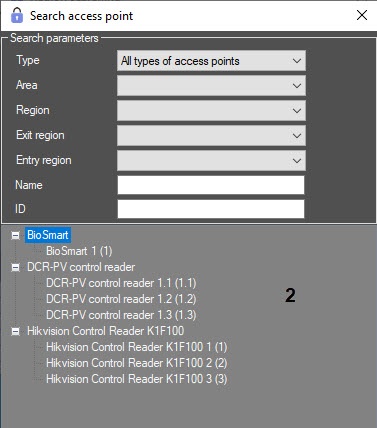

    1. Click the button. The Search access point window opens. For more information on searching an access point, see Working with the Search access level window.

      As a result, a list of search results that meets the specified search parameters is displayed (2).

    2. Double-click the necessary access point.

      Note

      To clear the list of access points, click the button.

      Region search results will be displayed in the list (1) of the Region searching window. The search is case-insensitive.

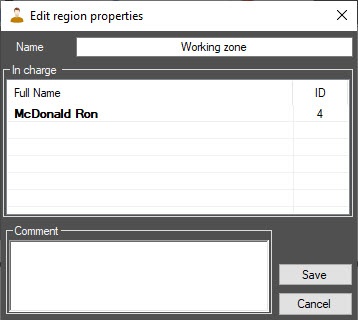

  7. Double-click the necessary region. As a result, you go to editing the region properties (see Creating and editing regions).

    Note

    The user that is currently being appointed in charge is highlighted in bold.

  8. Click Save to appoint the selected user in charge of the region.

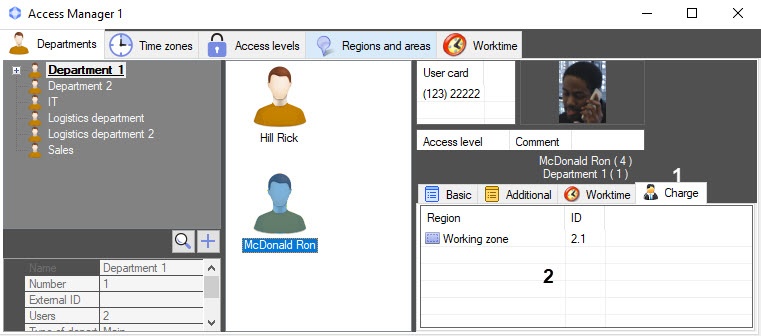

The user who is in charge of the region has the Charge tab (1). On this tab, a list of regions of which the corresponding user is in charge is displayed (2).

Appointing a user in charge of the region is now complete.
