Assigning access cards of SALTO ACS is performed on the setting panel of the SALTO Encoder object. This object is created on the basis of the SALTO Server object while downloading SALTO ACS configuration (see chapter Downloading and saving of SALTO ACS configuration of this documentation).

Attention!

Assigning access cards of SALTO ACS is impossible in case when the Encoder object is created manually in ACFA PSIM software package.

To assign access cards of SALTO ACS do the following:

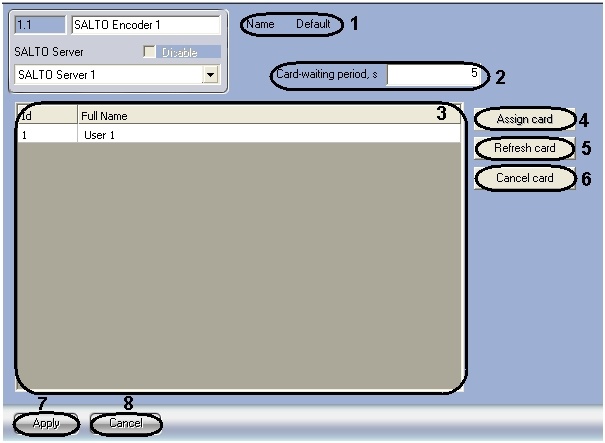

  1. In the Card-waiting period, s field set time (in seconds) that specifies the time interval after clicking Assign card or Refresh card and that is for bringing access card to encoder (2).

    Note.

    In the Name field the name of encoder object in SALTO ACS software is specified (1).

    Note.

    In the 3 field the users created in ACFA PSIM software package are displayed (3).
  2. To assign the access card to the user select necessary user in the 3 field click Assign card and bring the access card to the encoder during the period specified in the Card-waiting period field (4).
    Attention! For correct access cards’ assigning it’s necessary to register users without using Russian symbols.
  3. To assign the new access card to the user select necessary user in the 3 field click Refresh card and bring the access card to the encoder during the period specified in the Card-waiting period field (5).
  4. To cancel the access card to the user select necessary user in the 3 field click Cancel card (6)
  5. To save changes click Apply (7).

Note.

To cancel changes click Cancel (8).

Assigning access cards of SALTO ACS is completed.
