Associating AAN, AIO or AIM Service Input with terms

Associating AAN, AIO or AIM Service Input with terms allows changing the values of internal variable's terms at certain events.

The configuration steps below are shown for Apollo AAN Service Input. Associating AIO or AIM service inputs with terms is performed in the same way:

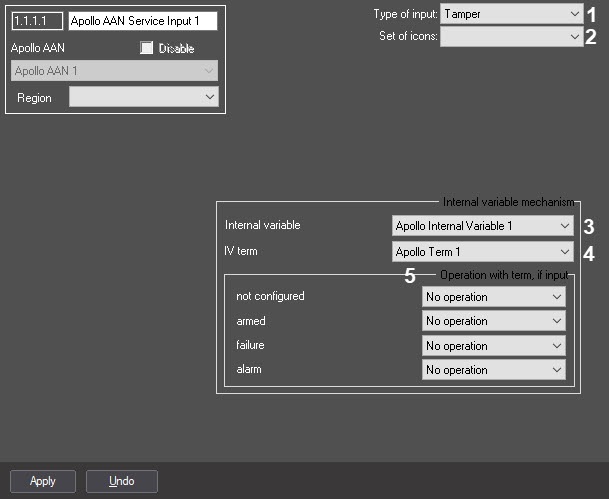

Go to the settings panel of the Apollo AAN Service Input object.

Select an object corresponding to the event from the Type of input drop-down list (1, see table below).

Object	Description
Host connection	Initiates an internal variable if the AAN controller's status of communication with the computer changes
Power failure	Initiates an internal variable on power failure
Tamper	Initiates an internal variable on housing intrusion

Select the set of icons for input on the Map from the Set of icons drop-down list (2).
From the Internal variable drop-down list, select the required Apollo Internal Variable object (3).
From the IV term drop-down list, select the Apollo Term object corresponding to a term to be controlled by the state of this Apollo AAN Service Input object (4).

From the drop-down lists in the Operation with term, if input group, select which values the term should have if the AIM input is not configured, armed, in a fault state or in an alarm (5). The following operations are available:

Operation	Description
No operation	The value of the corresponding term does not change
Clear term	The term is set to FALSE
Set term	The term is set to TRUE
Send impulse	The value of the term changes to the opposite for a short preset period

Click the Apply button.
To save the changes to the controller, write configuration to hardware.

Associating Apollo AAN Service Input with term is completed.

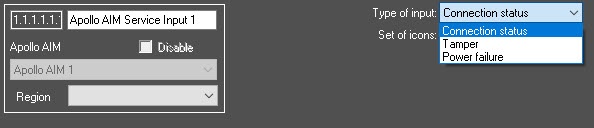

Associating AIO (the Apollo AIO Service Input object) or AIM (the Apollo AIM Service Input object) service inputs with terms is performed in the same way with one exception: in the Type of input drop-down list, the following values are available:

Object	Description
Connection status	Initiates an internal variable if the AAN controller's status of communication with the AIO or AIM panel changes
Tamper	Initiates an internal variable on housing intrusion
Power failure	Initiates an internal variable on power failure
