Adding fingerprints of the Access Manager users via the FOH02 control reader is performed as follows:

  1. Go to adding biometric data in the Access Manager window (see Adding biometric parameters).
  2. Select the (Virdi Fingerprints) Virdi Server extension that corresponds to the FOH02 control reader.
  3. The Operations on biometrics dialog box will open. To add a new fingerprint, click the Add fingerprints button.

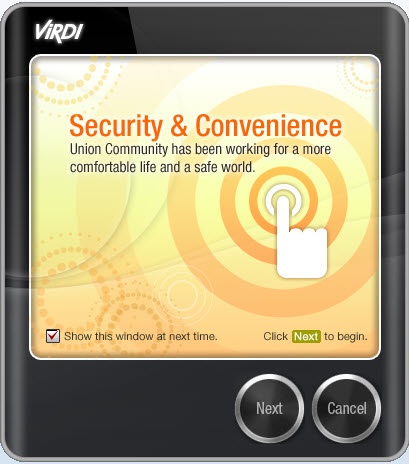

  4. The Virdi window will open.
  5. Click the Next button to start.
  6. Select fingers for fingerprinting.

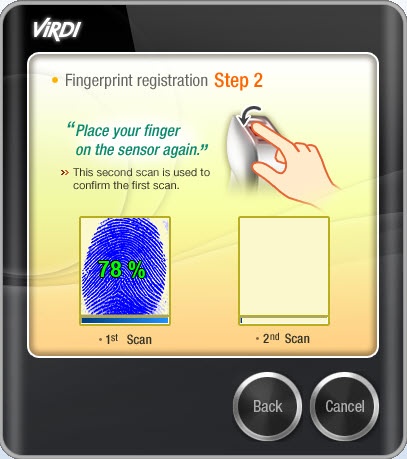

  7. Place your finger on the reader to scan the fingerprint — the result will be displayed in the 1st Scan window (1). Place your finger again to confirm the fingerprint. The result will be displayed in the 2nd Scan window (2).
  8. In the Operations on biometrics window, click the Ready button, then save the user's settings.

Capturing the fingerprints of the Access Manager users with FOH02 is complete.
