To change Gate controller address, proceed as follows:

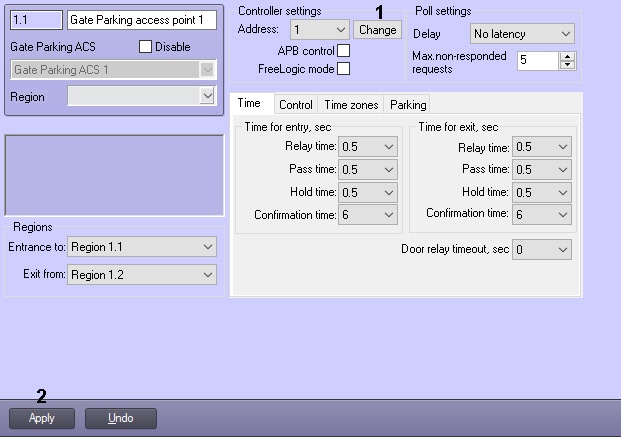

  1. Go to the Gate Parking access point object settings panel.
  2. Click the Change button next to the Address drop-down list (1).
  3. The Change address dialog box for setting the new address opens.
  4. Select new address in the drop-down list and click OK.
  5. Click Apply to save new address in the Axxon PSIM software database (2).
  6. Send configuration to the controller to apply settings on the hardware level (see Managing the configuration of a Gate controller).

The Gate controller address is now changed.
