Two Access point (OnvifAcfa) objects are automatically created under each door object. They correspond to the access points on different sides of the door, if the controller is configured in the One door entry and exit mode. If the controller is configured in the Two-door mode, then there should be only one Access point (OnvifAcfa) object under each Door (OnvifAcfa) object (it is necessary to delete the excess Access point (OnvifAcfa) object).

To configure the Axis access points, do the following:

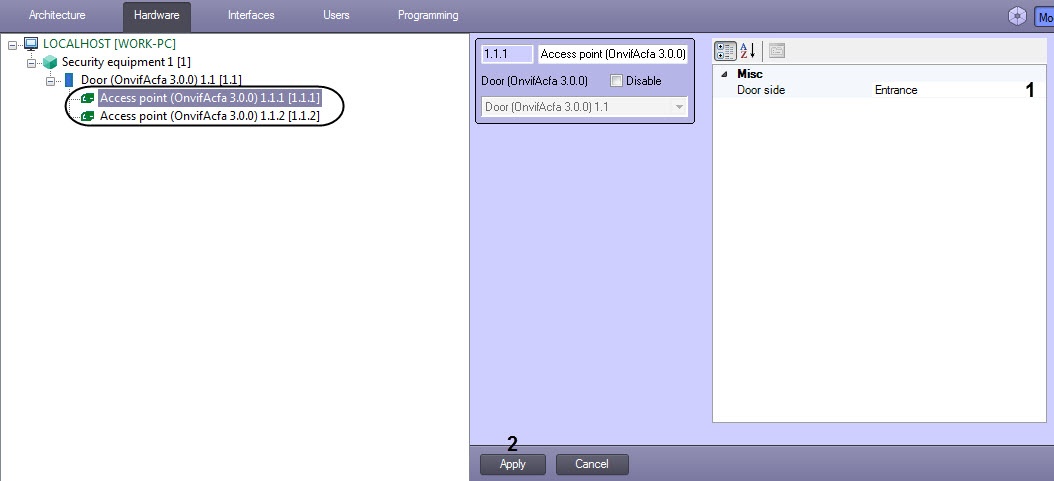

  1. Go to the settings panel of the Access point (OnvifAcfa) object.
  2. In the Door side drop-down list (1), select the access point location relative to the door: Entrance or Exit.
  3. Click Apply (2) to save the changes.
  4. Configure the second access point in the same way.

Configuration of Axis access points is complete.
