You can create the GD MAX object on the basis of the Galaxy Dimension Panel object. To configure the GD MAX object, do the following:

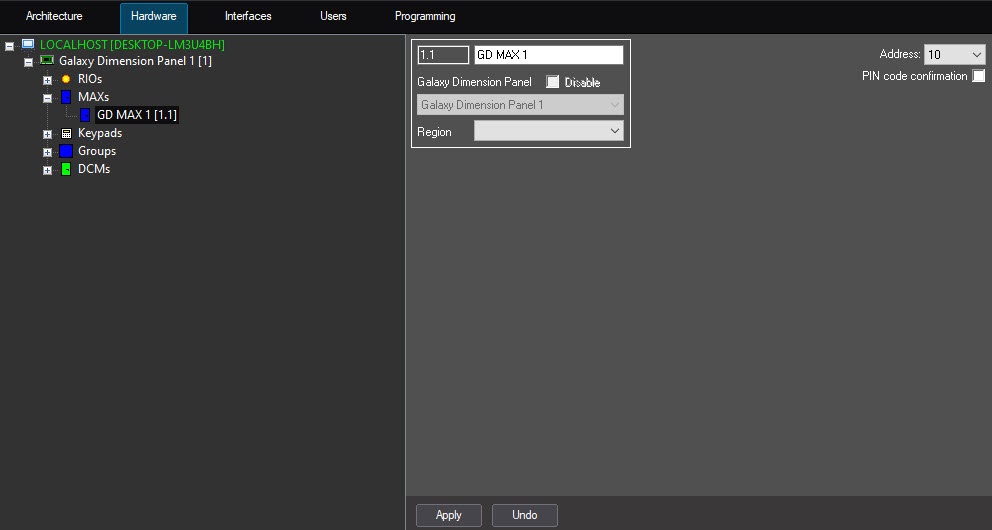

  1. Go to the settings panel of the GD MAX object.

  2. From the Address drop-down list, select the address displayed for the specific MAX reader in the menu of the operator of the Galaxy Dimension Panel.
  3. Set the PIN code confirmation checkbox to confirm operations using a PIN code.
  4. Click the Apply button to save the changes.

Configuration of the MAX proximity card reader is complete.
