To configure the MicroEngine parent object, do the following:

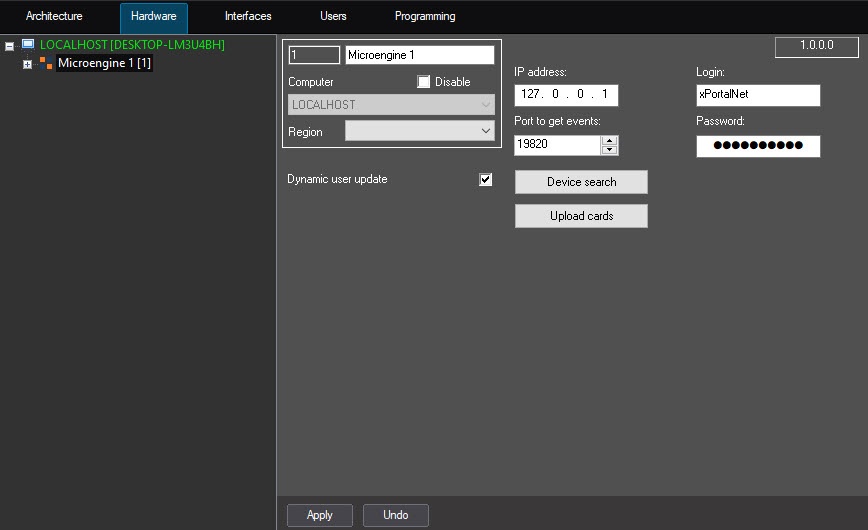

  1. Go to the settings panel of the Microengine object that is created on the basis of the Computer object on the Hardware tab of the System settings window.

  2. In the IP address field, specify the IP address of the Server with the installed MicroEngine "xPortalNet" ACS.
  3. In the Port to get events field, specify the number of the computer port to get events.
  4. In the Login and Password fields, specify the login and password to connect to the MicroEngine "xPortalNet" ACS.
  5. Click the Device search button to find all MicroEngine devices connected to the Server and automatically build a hardware tree.
    As a result, a hardware tree that looks like this is built:

  6. Click the Upload cards button to write all users to the MicroEngine controller.
  7. Set the Dynamic user update checkbox to have all changes to user access parameters automatically written to the MicroEngine controller.
  8. Click the Apply button to save the changes.

Configuration of the MicroEngine parent object is complete.
