To configure the ZKTeco PUSH SDK door, do the following:

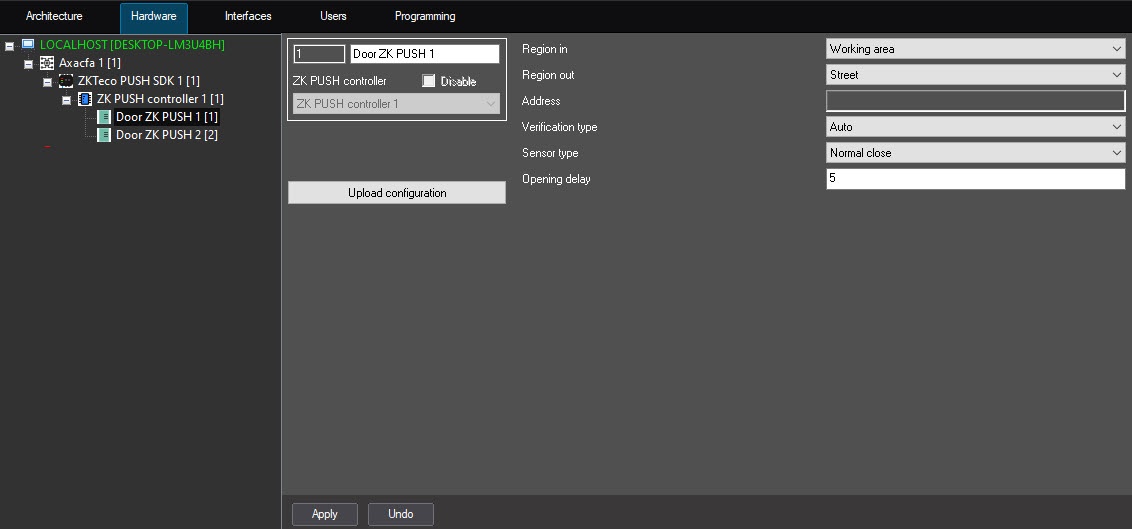

  1. Go to the settings panel of the Door ZK PUSH object that is created automatically after you download the configuration on the basis of the ZK PUSH controller object.

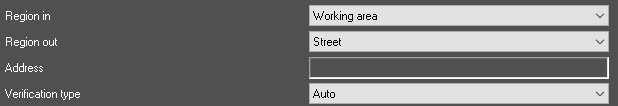

  2. In the Region in and Region out drop-down lists, select the regions on the exit and entry side through the door, respectively.

  3. From the Verification type drop-down list, select the required type of user verification:
    1. Auto (default),
    2. Fingerprint,
    3. User ID,
    4. Password,
    5. Card,
    6. Fingerprint or password,
    7. Fingerprint or card,
    8. Card or password,
    9. User ID + fingerprint,
    10. Fingerprint + password,
    11. Card + fingerprint,
    12. Card + password,
    13. Fingerprint + password + card,
    14. User ID + fingerprint + password,
    15. User ID + fingerprint or card + fingerprint,
    16. Face,
    17. Face + fingerprint,
    18. Face + password,
    19. Face + card,
    20. Face + fingerprint + card,
    21. Face + fingerprint + password,
    22. Finger vein,
    23. Finger vein + password,
    24. Finger vein + card,
    25. Finger vein + password + card,
    26. Other.
  4. From the Sensor type drop-down list, select the required type of door sensor:
    1. None (default)—door sensor isn't used.
    2. Normal open—door is always open when the power supply is on.
    3. Normal close—door is always closed when the power supply is on.

  5. In the Opening delay field, specify in seconds the maximum allowable time of delay for closing the door after user verification is confirmed. An alarm is generated when the door is open longer than the specified time. The default value is 0.
  6. Click the Apply button to save the settings.
  7. Click the Upload configuration button to upload this configuration to the corresponding controller.

Configuration of the ZKTeco PUSH SDK door is complete.
