To create an area, do the following:

  1. Go to the Regions and areas tab.

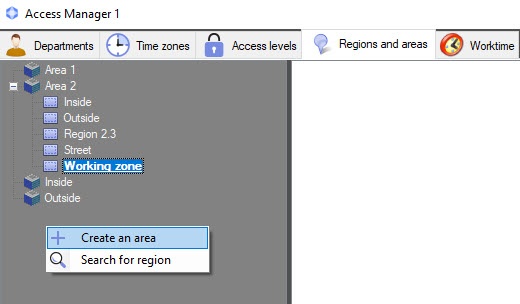

  2. Right-click in the regions tree in the area free from any objects.
  3. In the menu, select the Create an area item.

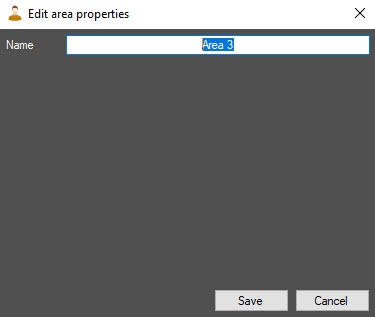

  4. The Edit area properties window opens.

  5. In the Name field, enter the name of the area.

    Note

    Name must be unique. If an area with this name has already been created in the system, then when saving, a corresponding message is displayed and the area isn't saved. Also, the name must not contain the following characters: < | >.

  6. Click the Save button.

The area is created.
