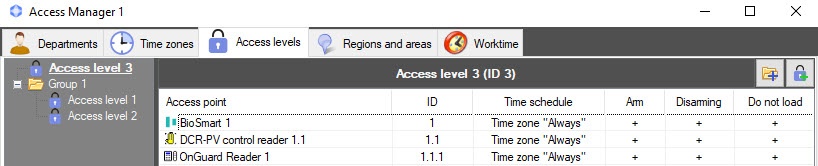

Editing an access level includes adding, deleting and changing links. To edit an access level, double-click the required access level in the list on the Access levels tab or double-click the name of access point in the table of access level parameters.

Note

The link to the corresponding access point will be selected in the Edit access level window as you click the name of the access point. The first link will be selected when you click the access level.

As a result, the Edit access levels window will open. You can work with this window the same as when creating an access level—see Create access level.

In ACFA PSIM, you can assign one time schedule to several access points. To do this, do the following:

  1. In the Edit access level window, select the List option of data display.
  2. Hold down the Shift key and select all access points that you want to edit.
  3. From the Time schedule drop-down list, select the required time schedule. As a result, this time schedul will be assigned to all selected access points.
  4. Click the Save button to save the changes.

Assigning a time schedule to several access points is complete.
