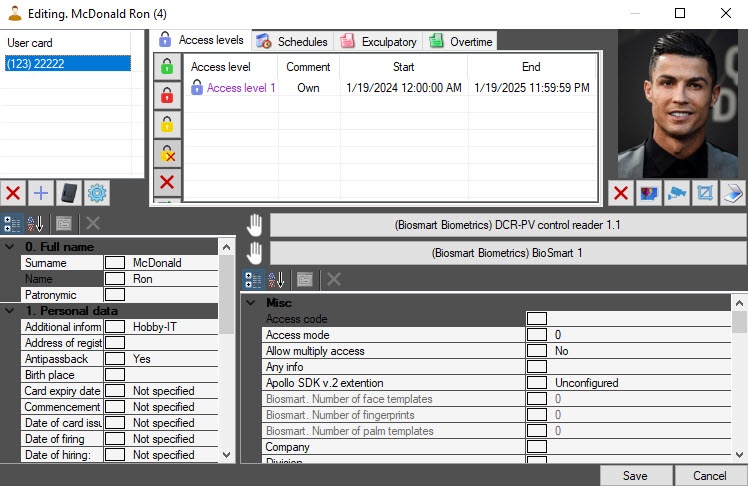

List of user access cards is displayed in the User card table of the Editing. <Full name> (ID) window.

The object code is specified in brackets, then the card code follows. The access cards format is set in the Access Manager object settings (see Configuring access cards).

Several access cards can be assigned to one user.

Attention!

Assigning multiple access cards to a user must be supported by hardware and by the corresponding integration module. If used ACS hardware/integration module supports only one card, and multiple cards are assigned to a user, then all cards, excep the first card, are ignored by the system.

Support for multiple user access cards has been tested in the following integration modules: Noder, ApolloSDK, SDK Orion v.2, PERCo-S-20, PERCo-S-20 v.2, AccessNet (ABC), Forteza, ParsecNet 3. For the information on others integration modules, please contact the AxxonSoft technical support.

Input of card number and code when assigning access cards to a user can be performed in one of the following ways:

  1. Manually.
  2. Using the control reader.

Note

List of control readers used for user access cards input is specified when configuring the system—see Configuring control readers in the Access Manager.
