In the Access Manager, you can highlight the following groups of access cards:

  • Cards not yet valid,
  • Cards expired,
  • User is locked.

To highlight access cards, do the following:

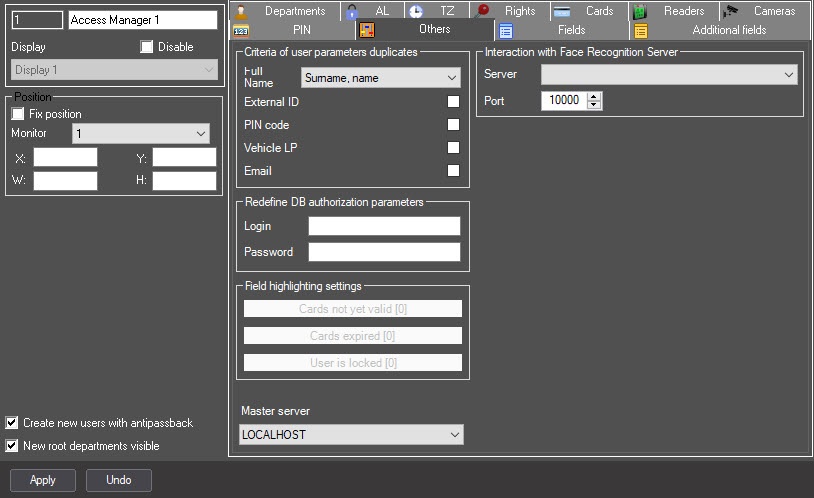

  1. Go to the Others tab on the settings panel of the Access Manager object.

  2. Right-click the Cards not yet valid [0], Cards expired [0], User is locked [0] button.

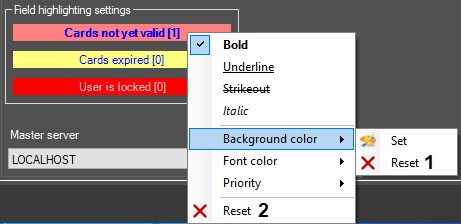

  3. In the menu that opens, select an option to highlight an access card:
    1. Specify text attribute: Bold, Underline, Strikeout, Italic.

    2. Specify the Background color and Font color by clicking Set, to cancel the action, click Reset (1).

    3. From the Priority drop-down list, select the priority level of highlighting a group of access cards in the range from 0 (default) to 4. Priority is displayed in square brackets. It is used when an access card is assigned to two groups at the same time.

      Note

      To cancel all changes, click Reset (2).

  4. Click the Apply button to save the changes.

Highlighting user access cards is complete.
