Managing the property of the BACnet channel on the map

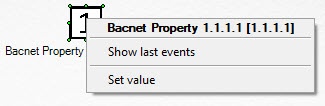

You can manage a property of the BACnet channel in the Map window using the menu of the Bacnet Property object:

Command for managing a property of the BACnet channel is described in the table:

Command	Function performed
Set value	Displays a window in which the value of the channel property is set

Property of the BACnet channels can be added to the map in the following forms:

As an icon of a state
As an icon of a state and an indicator
As a text (parameter value)
As a graphic indicator of a state—a line
As a graphic indicator of a state—a polygon
As a graphic indicator of a state—an ellipsis

Note

You can select the type of object display on the map when adding it (see Operations with objects in the Map editor utility).
