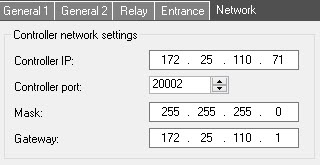

You can configure the network parameters of the BioSmart 5M controller on the Network tab on the settings panel of the BioSmart 5M object.

  1. In the Controller IP field, enter the IP address of the BioSmart 5M controller.
  2. In the Controller port field, enter the controller port number. The default number is 20002.

  3. In the Mask and Gateway fields, enter the addresses of the network mask and gateway, respectively.

  4. Click the Apply button to save the changes.

The network parameters of the BioSmart 5M controller are configured.
