To specify common and individual rights to access the time zones, do the following:

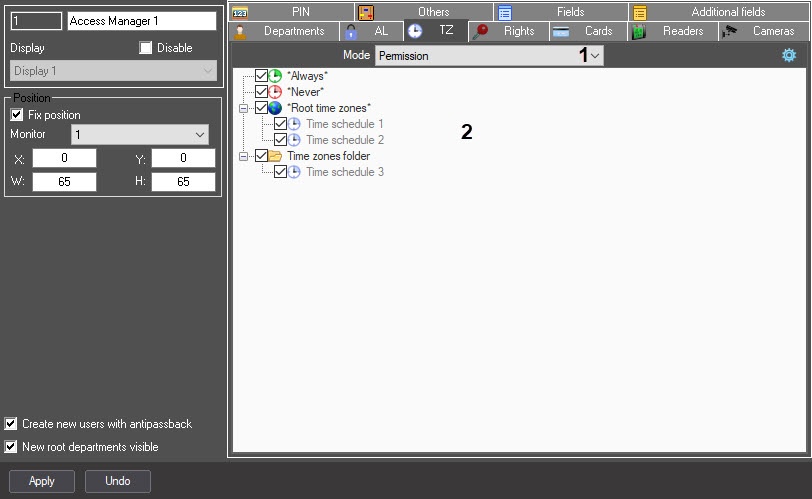

  1. Go to the settings panel of the Access Manager or Operators' permissions in AM object, to the TZ tab.
  2. From the Mode drop-down list (1), select the required mode:
    • Prohibition—restrict the access;
    • Permission—allow the access.
  3. Set the checkboxes (2) next to the required values:
    • "Always"—access to the predefined time zone "Always".
    • "Never"—access to the predefined time zone "Never".

    • "Root time zones"—set the checkbox to select all time zones in Axxon PSIM or expand the list and set the checkboxes only next to the required time zones.

      Note

      Use the button to set or clear all checkboxes, minimize and expand all drop-down lists, and search for time zones or folders.

  4. Click the Apply button to save the settings.
