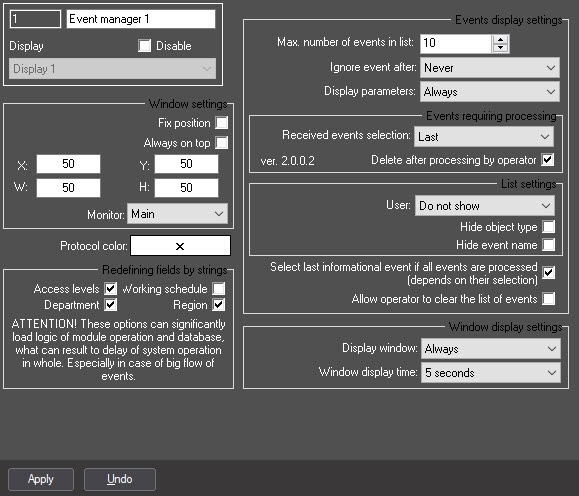

To configure the Event manager module on the settings panel of the Event manager object, do the following:

  1. Go to the settings panel of the Event manager object.
  2. Adjust the position of the Event manager interface window:
    1. Set the Fix position checkbox to fix the interface window at the specified coordinates preventing it from moving on the screen. If the checkbox is set, the interface window is displayed without heading and it is impossible to change size of window by markings and to close it.
    2. Set the Always on top checkbox if it's required to display the interface window on top of all opened windows.
    3. To configure position of the Event manager window, specify coordinates of the window's upper left corner in the X and Y fields and its width and height in the W and H fields.
    4. From the Monitor drop-down list, select the number of monitor in the system, on which the Event manager window must be displayed.

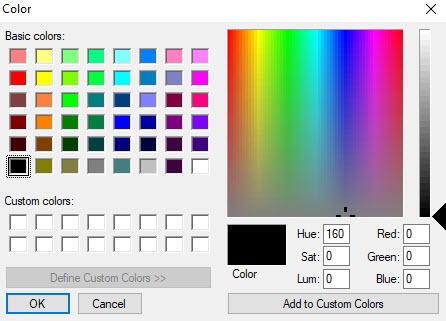

    5. Click the Protocol color button if it is necessary to set an arbitrary protocol color in the Event manager window. As a result, the standard Windows color palette window opens, in which you need to select the appropriate color.
  3. In the Redefining fields by strings group, set the checkboxes next to the fields for which the digital values stored in the Axxon PSIM database must be displayed as text:
    1. Access levels;
    2. Department;
    3. Working schedule;
    4. Region.

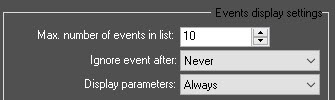

  4. Specify settings for displaying events in the Event manager window:
    1. In the Max. number of events in list field, specify the maximum number of events that will be displayed in the Event manager window. The default value is 10. If you set the value to 0, the protocol located in the lower part of the Event manager interface window will be hidden, and the area of the specified Template of displaying will be proportionally enlarged.
    2. From the Ignore event after drop-down list, select the time period after which event will be ignored by the Event manager module. If time period from the moment of event receiving exceeds the specified period then such events won't be displayed in the Event manager window. Select the Never value to display all events of any period of limitation.
    3. From the Display parameters drop-down list, select the way of displaying section of the Event manager window containing parameters of a user related to the event:
      1. Always—section of the Event manager window containing user parameters is displayed all the time (see Example of working with the Event manager module). If event not relating to user is selected, then this section will be empty.
      2. Never—section of the Event manager window containing user parameters is never displayed.
      3. If it's required—section of the Event manager window containing user parameters is displayed only if there is user related to the selected event. In this case, only the user parameters specified on the Field and Additional field tabs on settings panel of the Rule of displaying object (see Configuring the rules of displaying) will display. If the informational event is selected or the corresponding user is not found, then this section won't display.
    4. From the Received events selection drop-down list, select a method of selecting events that require processing:
      1. Do not select—events are not selected;
      2. First—only the first event is selected;
      3. Last—only the last event is selected.
    5. Set the Delete after processing by operator checkbox to delete the events that were already processed by an operator from the list and leave only the current events.
  5. Specify the protocol list settings of the Event manager window:
    1. In the User field, select the option to display the user's last name, first name and patronymic:
      1. Do not show—user's last name, first name and patronymic will be hidden;
      2. Surname—only the user's surname will be displayed in the protocol;
      3. Surname and initials—user's last name and initials will be displayed;
      4. Full name—user's full name (last name, first name and patronymic) will be displayed.
    2. Set the Hide object type checkbox to hide the Object type column in the protocol.
    3. Set the Hide event name checkbox to hide the Event column in the protocol.

    4. Set the Select last informational event if all events are processed (depends on their selection) checkbox to select only the last informational event.

      Note

      If there is at least one unprocessed event, the last informational event won't be selected.

    5. Set the Allow operator to clear the list of events checkbox to allow an operator to clear the list of events. To clear the list of events, right-click anywhere in the protocol and select Clear the list.
  6. Specify the Event manager window display settings:
    1. From the Display window drop-down list, select the value determining the way of displaying the Event manager window:
      1. Always—to display the window all the time;
      2. On event—to activate window by event from device or hide it after finishing of operator actions.

    2. From the Window display time drop-down list, select time period, during which the Event manager window will display after the event receiving.

      Note

      Window display time must be specified only if the On event way of window displaying is selected.

  7. Click Apply  button to save the changes.

Specifying the parameters of the Event manager object is complete.
