To configure the BACnet provider, do the following:

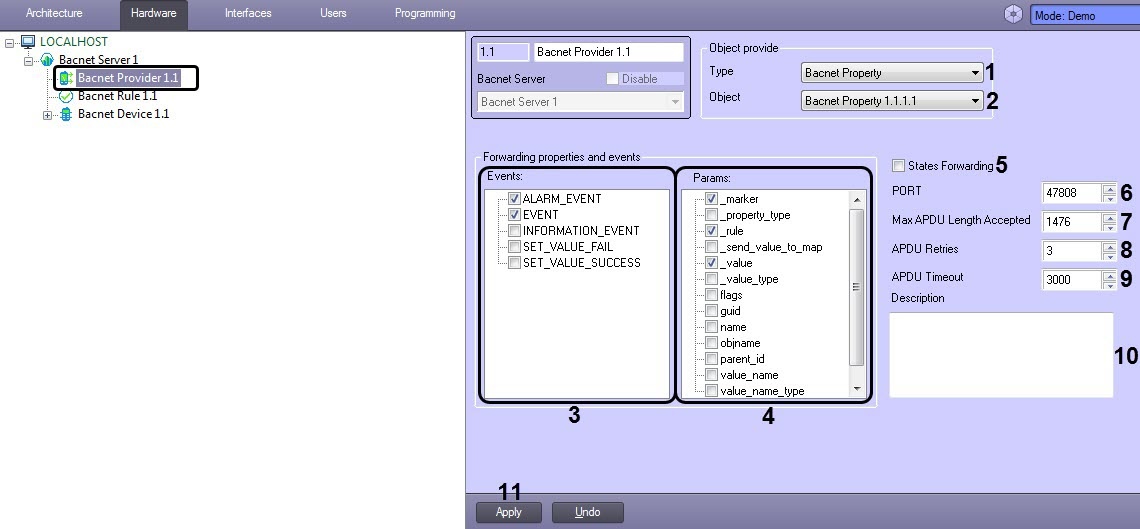

  1. Go to the Bacnet Provider object settings panel, which is created on the basis of the Bacnet Server object.

  2. From the Type drop-down list (1) select the required type of object in Intellect.

  3. From the Object drop-down list (2) select the required object in Intellect.

  4. In the Events list (3) set the check boxes for the object events that need to be forwarded.

  5. In the Params list (4) set the check boxes for the parameters that need to be forwarded.

  6. Set the States Forwarding check box (5) if it is necessary to enable the forwarding of the Intellect object states.

  7. In the PORT field (6) enter the port within the BACnet network.

  8. In the Max APDU Length Accepted field (7), enter the maximum number of octets (eight binary digits) depending on the type of connection (Bacnet IP, Bacnet MS/TP, etc.).

  9. In the APDU Retries field (8), enter the number of attempts to receive the events and/or parameters from the object in case the request was unsuccessful.

  10. In the APDU Timeout field (9), enter the time interval in milliseconds after which an attempt will be made to re-request if the previous attempt was unsuccessful. Also, this time sets the COV polling period.

    Note

    COV stands for COV Subscriptions, i.e. subscription to BACnet device objects, in this case it is a subscription to the Intellect object. The BACnet server waits for the notification about the events and/or Intellect object parameter changes in order to forward them.

  11. In the Description field (10), enter the description of the forwarded data, if necessary.
  12. Click the Apply button (11) to save the changes.

The BACnet provider configuration is now complete.
