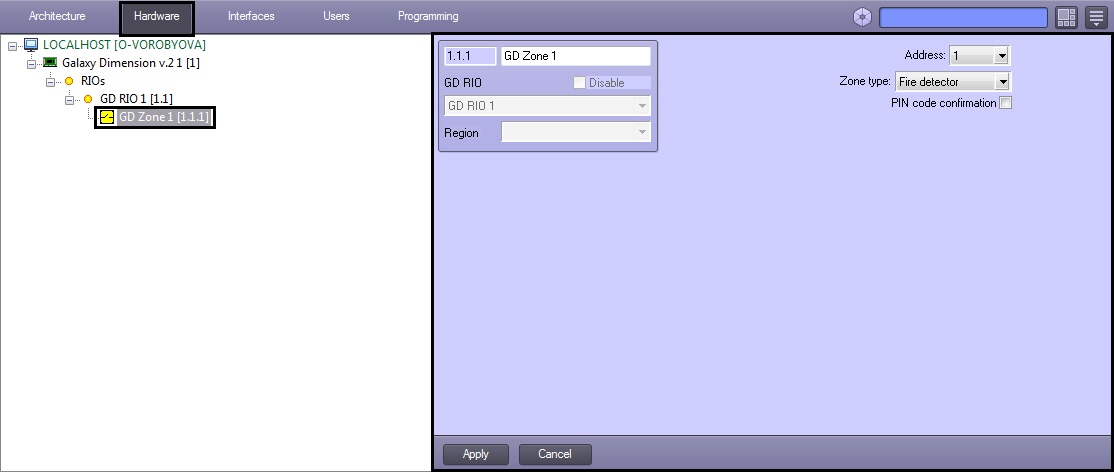

The Galaxy Dimension v.2 security zones are configured in the settings panel of the GD Zone object. This object is created from the GD RIO object on the Hardware tab of the System settings dialog box.

The Galaxy Dimension v.2 security zones are configured as follows:

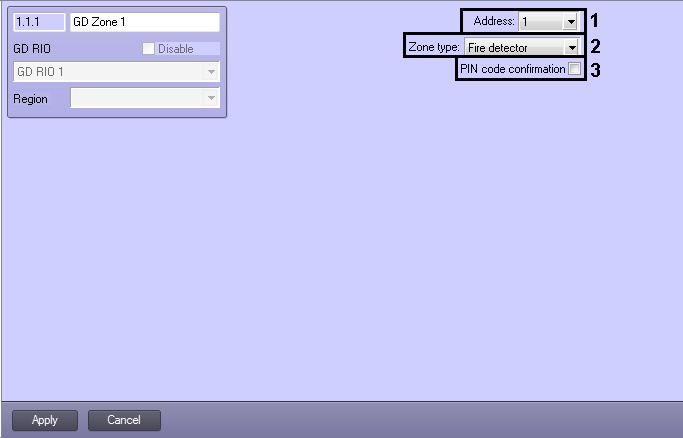

  1. Go to the settings panel of the GD Zone object.
  2. From the Address: drop-down list select the address displayed for the specific security into the operator's menu of the Galaxy Dimension v.2 control panel (1).
  3. From the Zone type: drop-down list select type of configured secured zone (2).
  4. Set the PIN code confirmation checkbox if it's required to confirm operations using PIN code (3).
  5. Click Apply to save changes.

Configuring of the Galaxy Dimension v.2 security zones is completed.
