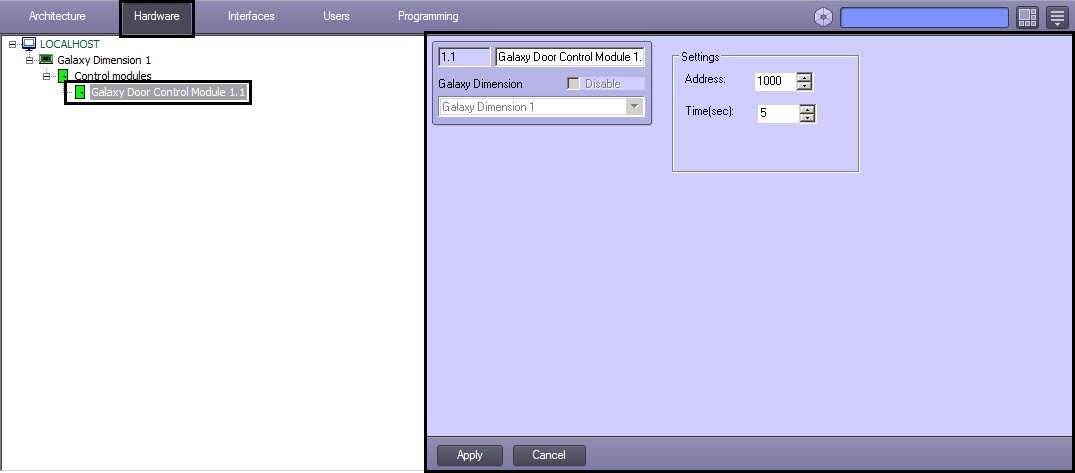

Door control modules of the Honeywell Galaxy Dimension control panel are configured in the settings panel of the Galaxy Door Control Module object. This object is created from the Galaxy Dimension object on the Hardware tab of the System settings dialog box.

Honeywell Galaxy Dimension control modules are configured as follows:

  1. Go to the settings panel of the Galaxy Door Control Module object.

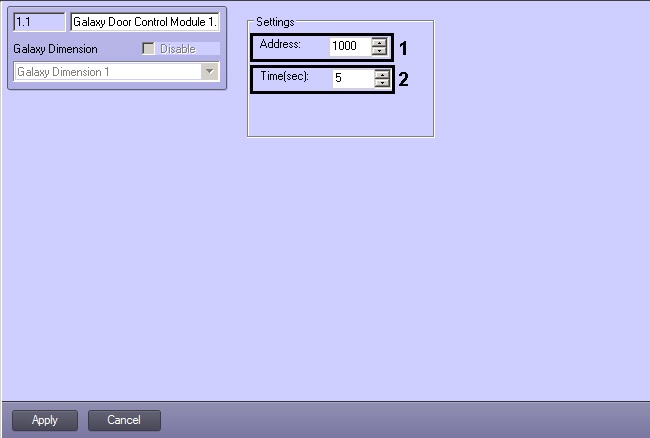

  2. In the Address: field enter the address displayed for the specific control module into the operator's menu of the Honeywell Galaxy Dimension control panel (1).
  3. In the Time (sec): field enter the time period after which the door control module will change its state (2).
  4. To save changes click the Apply button.
  5. Repeat steps 1-3 for all control modules of the control panel.

Configuration of Honeywell Galaxy Dimension control modules is completed.
