The Suprema 2 controller is configured as follows:

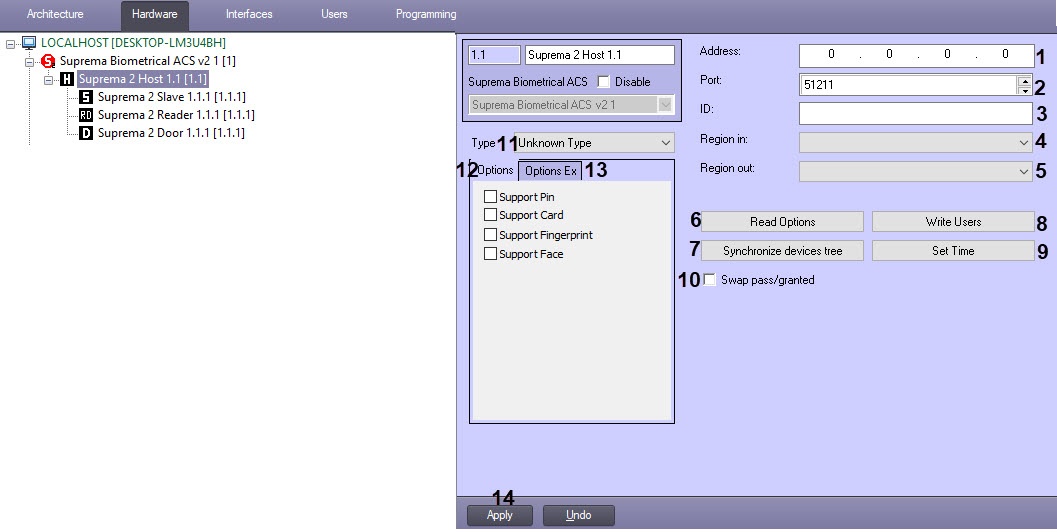

  1. Go to the Suprema 2 Host object settings panel. The object is created on the basis of the Suprema BiometricalACS v2 object.
  2. In the Address (1) field, enter the IP address of the Suprema 2 controller.
  3. In the Port (2) field, set the port of the Suprema 2 controller.
  4. In the ID (3) field, specify the ID of the controller connected via Ethernet.
  5. From the Region in (4) drop-down list, select the Region corresponding to the area where the user will be located after entering.

  6. From the Region out (5) drop-down list, select the Region corresponding to the area where the user will be located after exiting.

    Note

    The Region in and Region out fields should be selected if Time and Attendance interface module is used. Otherwise, leave these fields empty.

  7. Click the Read Options (6) button to read the current options of the controller. The Type (11) of the controller is determined automatically. The controller work features change depending on its specific type. For example, for Xpass S2 type controllers, the functionality of the module for reading events and writing users changes. This happens because with the usual functionality the events come with a delay, and it takes a long time to write users.

    Attention!

    It is not recommended to change the Type setting manually.

  8. Click the Synchronize devices tree (7) button to automatically create a tree of devices connected to the controller in ASFA Intellect.
  9. Click the Write Users (8) button to write users to the controller.
  10. Click the Set Time (9) button to synchronize the controller time with the computer time.

  11. Configure sending an event upon successful access: Swap pass/granted (10). If the checkbox is cleared, the Pass event is generated, otherwise, the Access granted event is generated.

    Note

    The setting is required for the Time and Attendance Module operation with one access terminal.

  12. When reading the options (step 7), the checkboxes are automatically set on the Options (12) tab with the basic device features and on the Options Ex (13) tab with the advanced device features. These tabs are not editable and show the functional features of a specific type of Suprema 2 controller. The set of supported features is different for each type of Suprema 2 controller. The Options Ex tab looks like this:

  13. Click the Apply button (14) to save changes.

Configuring the Suprema 2 controller is completed.
