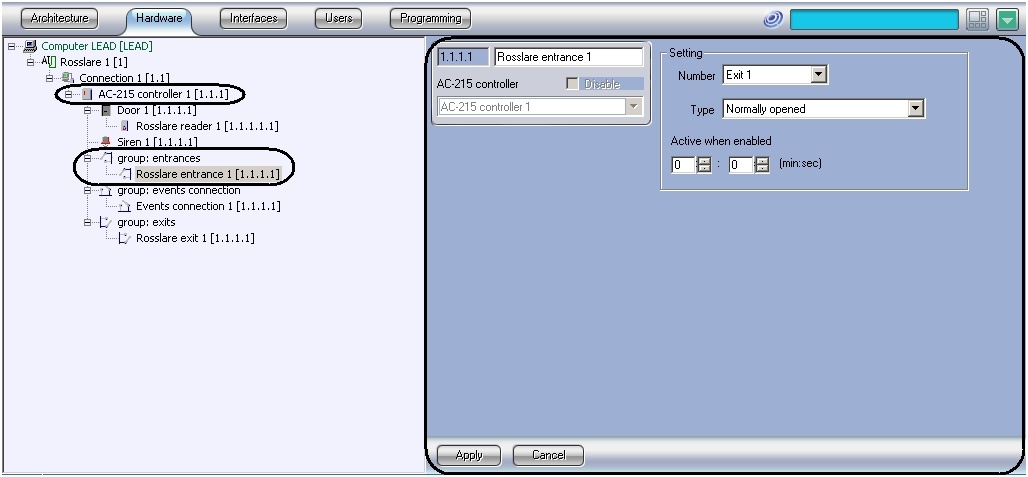

Configuration of AC-215 controller entrances is performed on the setting panel of the  Rosslare entrance object. This object is created on the basis of the AC-215 controller object on the Hardware tab of the System settings dialog box.

To configure AC-215 controller entrances do the following:

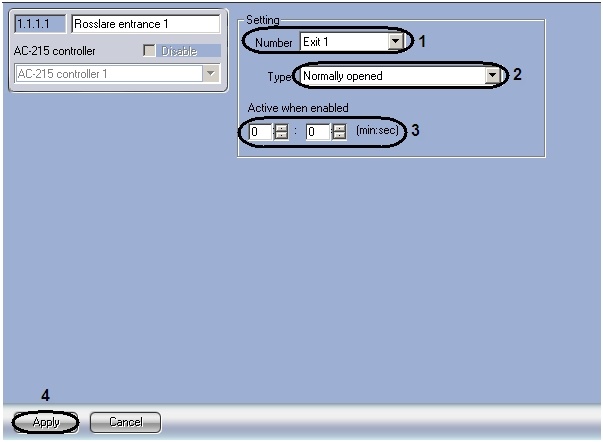

  1. Go to the setting panel of the Rosslare entrance object.
  2. From the Number dropdown list select the number of exit (1).
  3. From the Type dropdown list select the corresponding type of the exit that is used (2).
  4. In the Active when enabled field using up-down keys set the time (in minutes and seconds) during which the entrance is possible (3).
  5. To save changes click Apply (4).

Configuration of entrances is completed.
