Attention!

When you assign a template, a detection tool is created, which increases the load on the Server. Consider the CPU load by the detection tool before assigning the template.

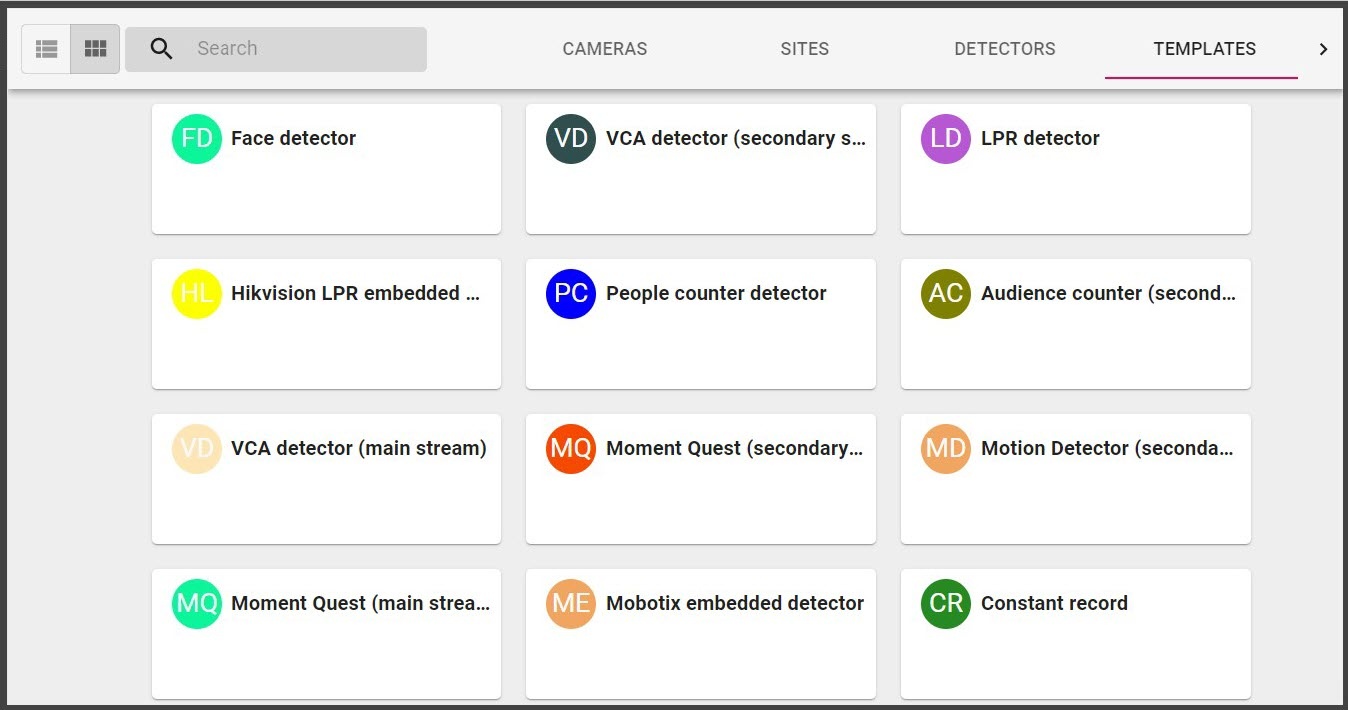

Using the templates, you can apply the same parameters to different cameras. There are 12 default templates:

  1. Audience counter (secondary stream)—a Queue detection tool is created on a low-quality video stream.
  2. Constant record—video will be constantly recorded to the archive.
  3. Face detector—a Face detection tool is created for the camera. The video will be recorded to the archive if the detection tool triggers.
  4. Hikvision LPR embedded detector—a built-in License plate recognition detection tool is created for the Hikvision cameras.
  5. LPR detector—a License plate recognition detection tool is created for the camera.
  6. Mobotix embedded detector—a built-in Motion detection tool is created for the Mobotix cameras. The video will be recorded to the archive if the detection tool triggers.
  7. Moment Quest (main stream), Moment Quest (secondary stream)—an Object tracker and a Motion in area detection tools are created on a high or a low-quality video stream with object tracks recording. The video will be recorded to the archive if the detection tool triggers.
  8. Motion Detector (secondary stream)—a Motion detection tool is created on a low-quality video stream.
  9. People counter detector—a People counter detection tool is created on a low-quality video stream.
  10. VCA detector (main stream), VCA detector (secondary stream)—an Object tracker and a Motion in area detection tools are created on a high or a low-quality video stream. The video will be recorded to the archive if the detection tool triggers.

To assign a template to a camera, do the following:

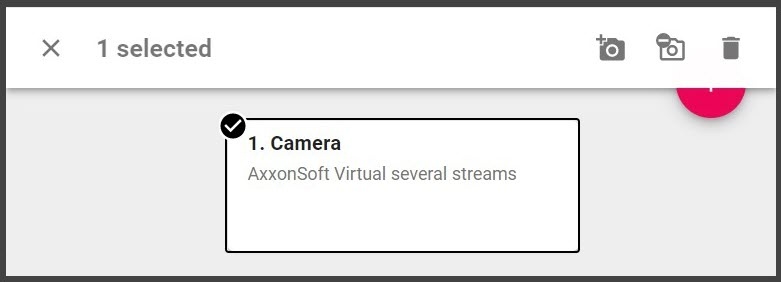

  1. On the Cameras tab, click the button in the upper left corner of the camera panel.
  2. Click the button.

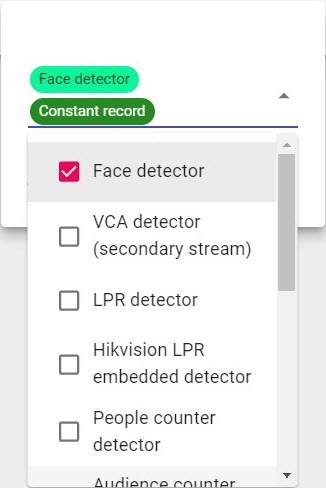

  3. Set the checkboxes next to one or several templates.

To save the changes, click . To cancel, click .

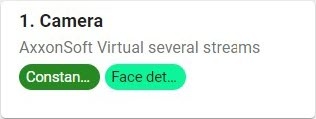

The template is assigned to the camera.

To unassign the template from the camera, click the button, and do the same actions as for assigning the template.
