There are 10 widget types:

  1. Static content − to display any text information, URL links to images and videos in MP4 format, as well as URL links to YouTube videos.

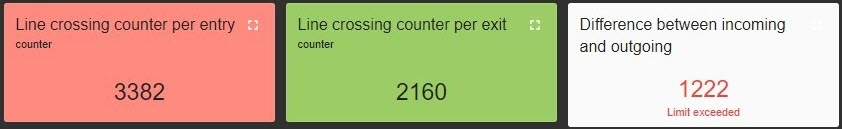

  2. Counter − to count the number of selected event types or to work with events that contain numeric data.
  3. Indicator − to perform mathematical operations (addition, subtraction, multiplication, division) with the data of the Counter widgets and to indicate if the obtained value satisfies the specified conditions.
  4. Line − to display the selected data as a graphs.

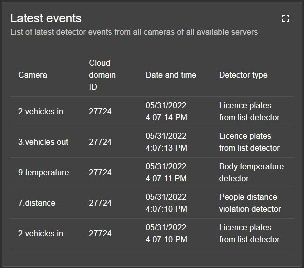

  5. Events − to display the Axxon One events available to the user and the event information in tabular form.

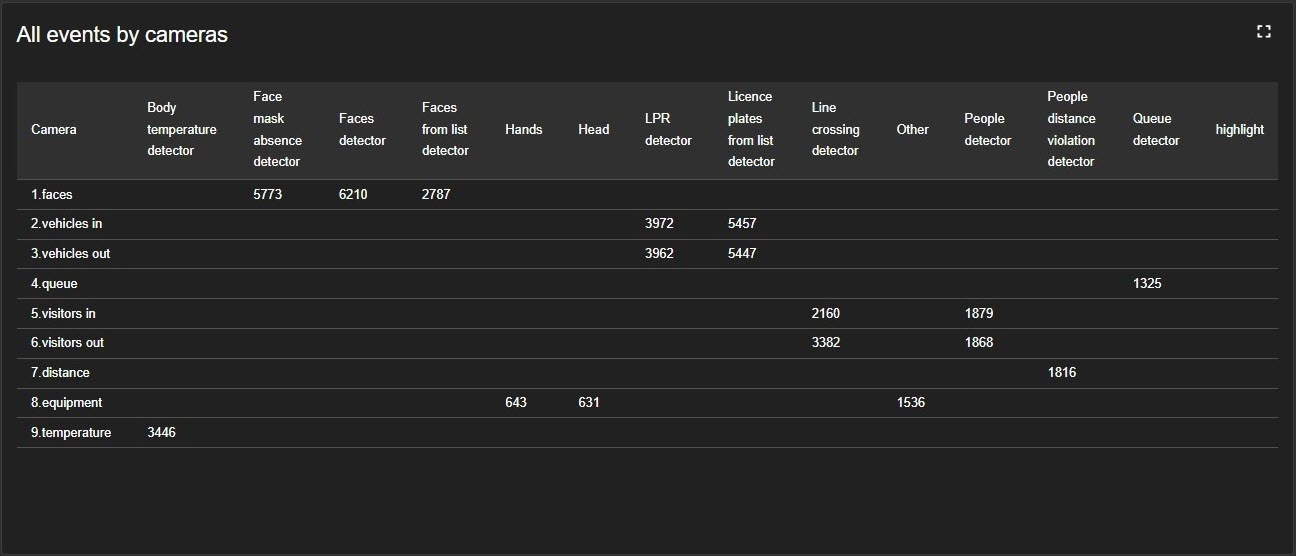

  6. Pivot − to calculate, analyze data and display it in tabular form.

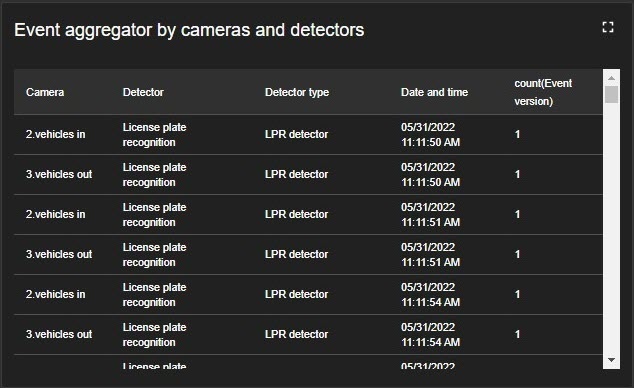

  7. Aggregation − to combine data of the same type and display it in tabular form.

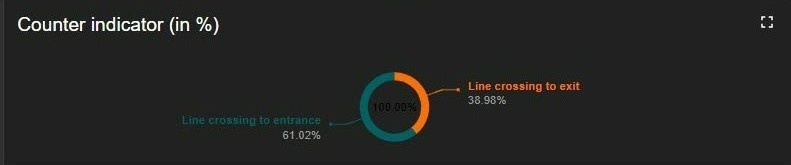

  8. Counter indicator − to display data from widgets of the Counter type in the form of a pie chart, to indicate if the received value meets the specified conditions.

    Note

    All numbers on the Counter indicator widget are received from the dependent counters.

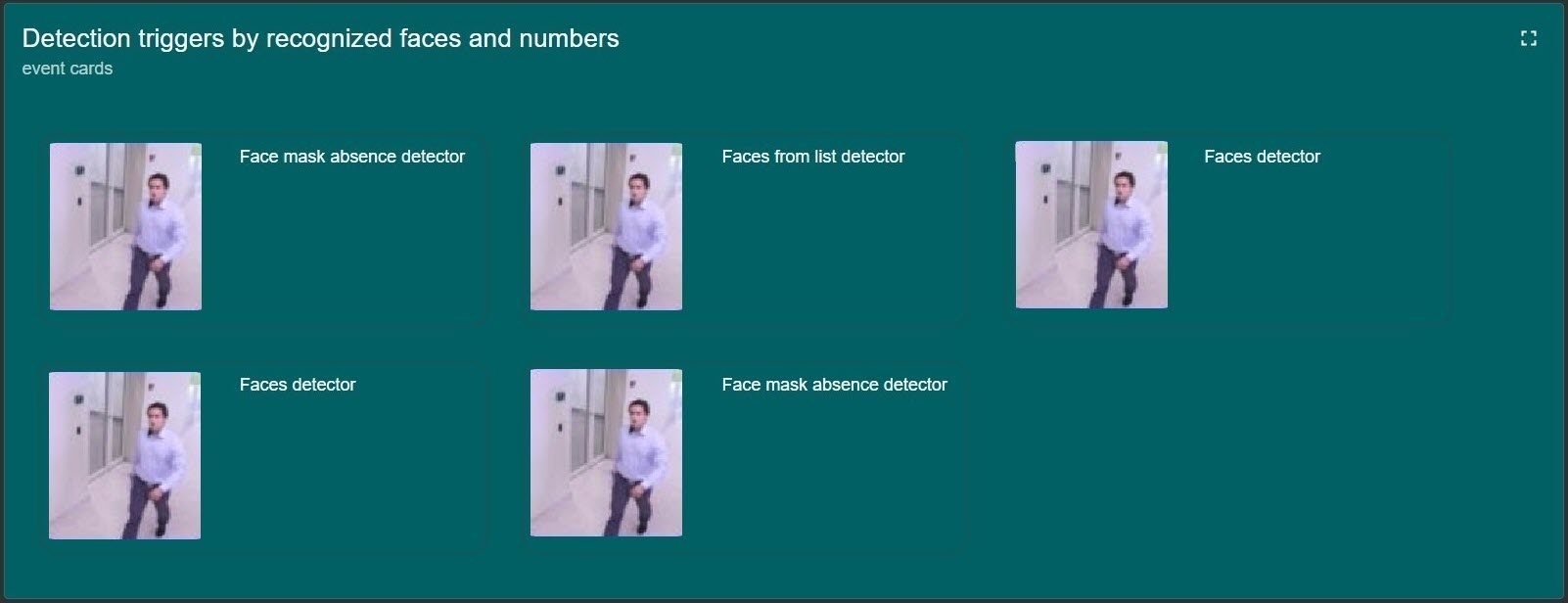

  9. Event cards − to display Axxon One events available to the user, and the information about them in the form of frames.
  10. Last value − to display the values of the detection tool events.
