Information on recommended platform, number of Servers, available resolutions of the part of the frame used for recognition will be shown when calculating CARMEN platform.

Note.

In the Resolution column not the resolution of the incoming video signal is specified but the resolution of the part of the frame that is set as Search area when configuring the LPR channel object.

Example: a camera with 800x600 resolution is used for recognition when 400x200 search area is set. In this case look for 400x200 line in the table – not 800x600.

By default the information on the number of recognition channels required to be purchased (i.e. the number of system cores) is not displayed in the calculation results for CARMEN. To display this information, do the following:

  1. Click the Settings button.

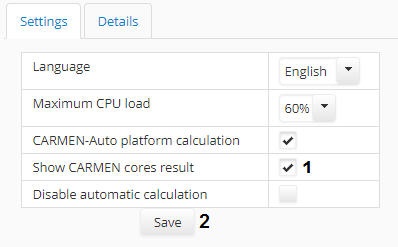

  2. In the appeared box set the Show CARMEN cores result (1) checkbox and click Save (2).
  3. The Cores column is displayed in the platform calculation results.
