If a receipt printer is connected to a computer with ATM-Intellect Pro installed, then ATM receipts can be placed as captions over the camera video image.

Note.

ATM receipts captioning is supported for the following receipt printers: CUSTOM VKP-80II-UE-EM00041.

Each surveillance object can interact with a separate receipt printer while several surveillance objects can interact with corresponding receipt printers simultaneously.

Note.

The Surveillance object transfers to the Intellect core the Receipt print start or Receipt print stop events when the receipt printout is started or stopped, correspondingly.

ATM receipts captioning is configured as follows:

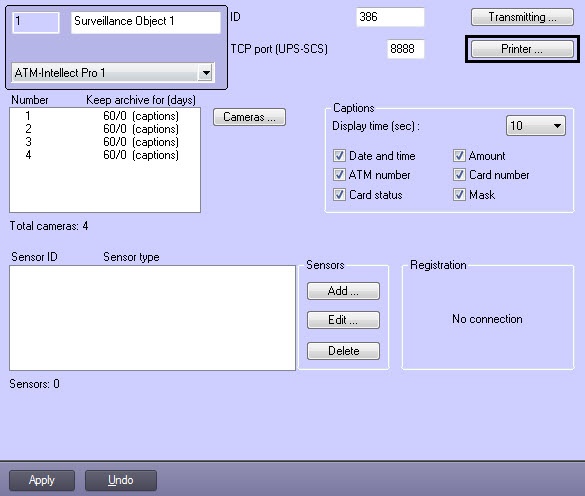

  1. Go to the settings panel of the Surveillance object object.
  2. Click Printer....
  3. A window for setting up ATM receipts captioning will be opened.
  4. Set the Enable checkbox (1).
  5. Configure starting recording on camera depending on the recording mode:
    1. If cameras binded to the Surveillance object operate in continuous recording mode, set the Constant recording mode checkbox (2). In this case captioning will be performed in the following order:
      - When the receipt beginning is detected, captions are placed over the video for all cameras for which ATM events captioning is enabled.
      - 2 seconds after the receipt ending is detected, captioning stops and the screen is cleared of captions.
    2. If cameras binded to the Surveillance object do not operate in continuous recording mode, uncheck the Constant recording mode checkbox (2). In this case captioning will be performed in the following order:
      - When the receipt beginning is detected, recording starts for all cameras for which ATM events captioning is enabled.
      - Captions are placed over the video for all of these cameras.
      - 2 seconds after the receipt ending is detected, captioning stops and the screen is cleared of captions.
      - Recording for all of these cameras stops.
  6. Select the COM port number from the COM port number dropdown list (3).
  7. Select speed for data exchange over COM port from the COM port speed dropdown list (4).
  8. In the COM port format field specify the COM port format (5):
    1. first digit: 5 to 9 data bits;
    2. second letter: N (No parity) – no parity bit, E (Even parity) – even parity bit, O (Odd parity) – odd parity bit;
    3. third digit: 1 or 2 stop bits.
  9. Click OK (6). A window for setting up ATM receipts captioning will be closed.
  10. Click Apply.

ATM receipts captioning is now configured.
