Objects creation in the hardware tree is performed as follows:

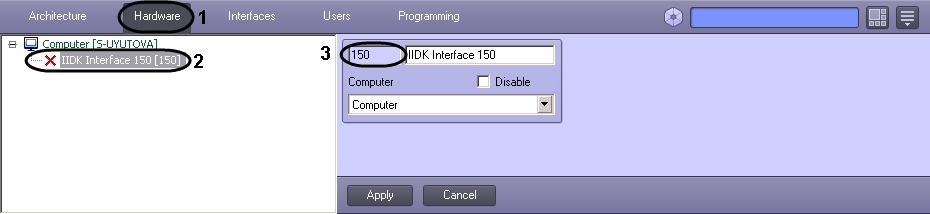

  1. Go to the Hardware tab of the System settings dialog box (1).
  2. Create the IIDK Interface object (2). Set the ID number of the IIDK Interface object (3).
  3. Then create the ATM-Intellect Workstation TC object.
  4. After the ATM-Intellect Workstation TC object is created its setting panel appears in the right of System settings dialog box.
  5. In the IIDK interface field enter the identification number of the IIDK interface object created on step 2.

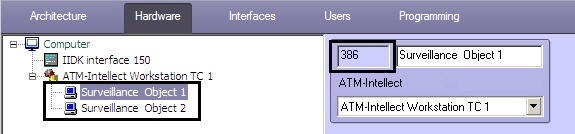

  6. Create Surveillance object objects corresponding to the connected surveillance objects. When you create these objects specify the same ID as in the ID field on the settings panel of the corresponding Surveillance object object created under the ATM-Intellect Pro object.

Note.

The ID and Name fields must not contain underscores (_) or backslashes (\), the ID field is limited to 9 characters and must not contain spaces.

The address of the ATM can be specified as the object name.

Objects creation is completed.
