Load images of recognized license plates from the database to the disk as follows:

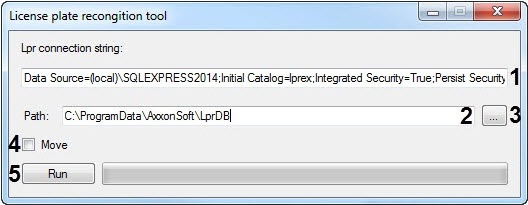

  1. In the Lpr connection string field (1) enter the connection string for the license plates database.

  2. In the Path (2) field specify manually or using the  button (3) the path to the folder where the images wil be loaded to.

    Info

    If "user-defined text" is specified in the Path field, then the folder with this name will be created in the same folder where there is the utility.

  3. Set the Move checkbox (4) checked if the images are to be deleted from the database after they are moved to the disk.

    Info

    If the Move checkbox is set unchecked, then the images are not deleted from the database after they are moved to the disk.

  4. Click the Run button (5) to load the images to the specified folder. As a result the total images of recognized license plates loaded from the database are displayed.
