It is possible to record a video signal received from a LP recognition video camera during a predetermined time interval. If this function is enabled, the recording starts automatically when the LPR channel recognizes an LP number.

Note

In case of heavy traffic, when subsequent LP numbers are registered in a time period less than that specified, the video signal is recorded continuously.

To enable the function of automatic video recording, do the following:

  1. Go to the LPR channel object settings panel, corresponding to the activated module (see Activating the software module used for identifying the plates).

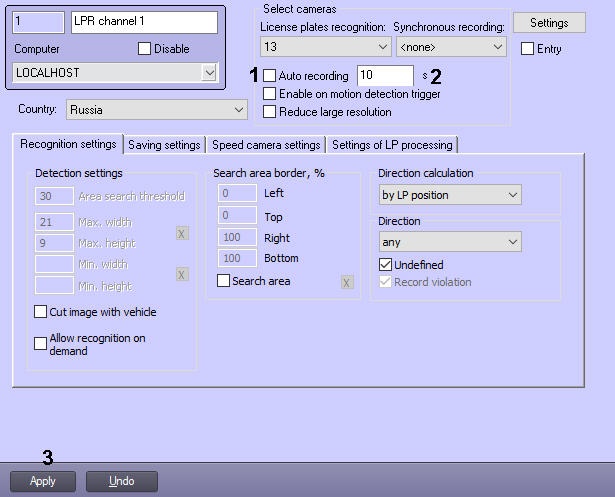

  2. Set the Auto recording checkbox to enable the recording of the video upon recognizing a LP number (1).

    Note

    For the correct auto recording when working with the IntLab program module, specify the Pre-alarm record parameter in the settings panel of the Camera object (see Configuring video in the Pre-alarm record mode).

  3. In the field next to the checkbox (2), specify for how many seconds the video should be recorded after LP number recognition.

    Note

    Zero (0) in this field means that the recording starts at the moment of LP recognition and continues indefinitely.

  4. Click the Apply button (3).

The auto recording setup is complete.
