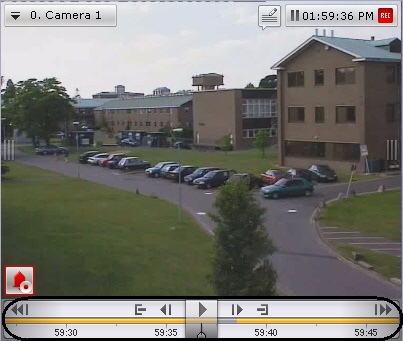

The advanced archive navigation panel is automatically displayed in the lower portion of the viewing tile when you switch to Archive mode or Archive Search mode.

The advanced archive navigation panel includes the following components:

  1. Timeline
  2. Playback control buttons
  3. Tabs for compressed and standard archive playback modes

The advanced archive navigation panel is used to position the archive at a specific time, control playback, and switch to compressed archive playback mode.

The timeline on the advanced archive navigation panel features archive tags . This tag  stands for a lack of archive in a compressed format. The time period for which there is no archive is indicated near the tag.

The advanced archive navigation panel works completely in sync with the playback panel and the timeline:

  1. The playback mode selected on the advanced navigation panel is displayed on the playback panel.
  2. The playback speed that is set on the playback panel will be used as the playback speed when playback is restarted on the advanced navigation panel, and vice versa.
  3. The playback control buttons on the advanced navigation panel are the same as the buttons on the playback panel.
  4. Any movement through the main timeline is duplicated onto the timeline of the advanced navigation panel.
