If the Shift work style is set, the timeline will be displayed in alternately colored segments (depending on the number of shifts set per day and the beginning of the first shift). Each segment contains an identification number for each shift. In Axxon Next, the user can choose 3 types of shifts (three 8-hour shifts, two 12-hour shifts, or one 24-hour shift).

To configure the Shift work style, you must perform the following steps:

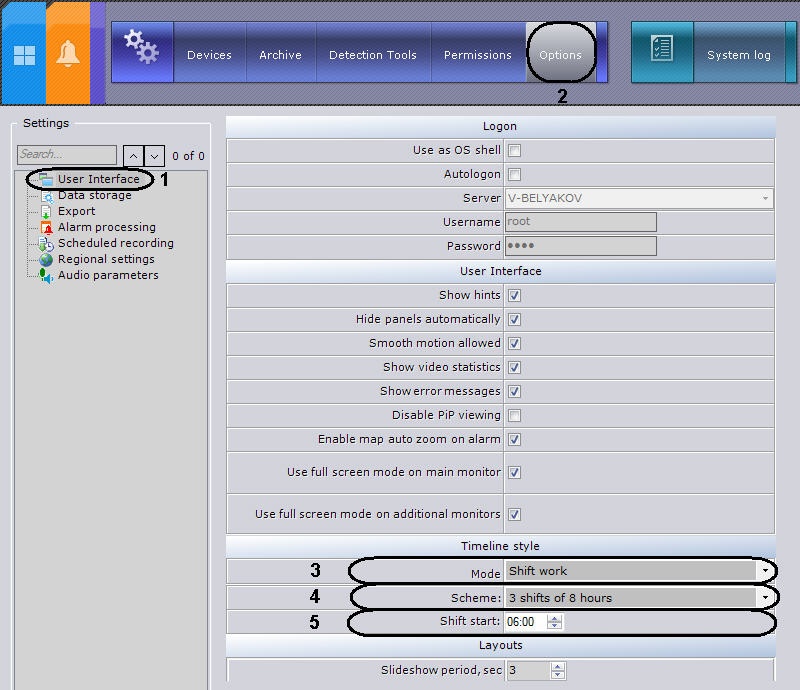

  1. Go to Settings → Options → User interface (1–2).
  2. Select Shift work from the Mode drop-down list in the Timeline style settings group (3).
  3. Select the shift type from the Scheme list (4).
  4. Define the start time of the shift (5).
  5. Click Apply to save the changes.

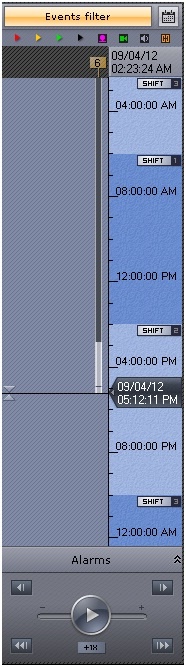

The timeline will now look like the one pictured in figure when viewing an archive.
