Connect CommaxComplexServer via Event Source as follows:

  1. Run IP Device Discovery Wizard (see Adding and removing IP devices).
  2. In the field for manually adding an IP device, select Event Source in the Device Type drop-down list (1).
  3. In the Vendor list select Commax (2).
  4. Click the button .
    The Event Source object is added to the system.
  5. Select the new object.

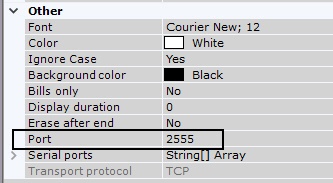

  6. Enter the destination port name for CommaxComplexServer events.
  7. Click Apply.

The CommaxComplexServer connection is now configured.

Note

You can present information as caption (titles) superimposed on video in the Camera window. See POS configuration instructions for that (see Configuring POS devices).
