To configure common parameters for pose detection tools, do as follows:

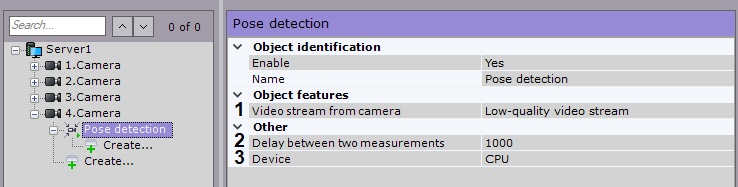

  1. Select the Pose Detection object.
  2. If a camera supports multistreaming, select the stream for which detection is needed (1). Selecting a low-quality video stream allows reducing the load on the Server.
  3. Set the interval between the analyzed frames in milliseconds (2). The value should be within the range of 30 – 10,000.
  4. Select the processor for the neural network - CPU, one of GPUs, or Intel NCS (3, see Hardware requirements for neural analytics operation).

  5. By default, the entire FoV is an area for detection. If necessary, you can specify the areas for detection and skip areas in the preview window. To set an area for detection, right click anywhere on the image, and select a desired area.


    Attention!

    If you use Axxon Next Detector Pack 3.4.0 and earlier versions, you can only specify the skip areas, and there is no window for selecting the area for detection.

    The ability to set the area for detection is featured in Axxon Next Detector Pack 3.5.0.

    Note

    The areas are set the same way as for the Scene Analytics (see Configuring the Detection Zone).

    This is how it works:

    1. if you specify areas for detection only, no detection will be performed in the rest of FoV.

    2. if you specify skip areas only, the detection will be performed in the rest of FoV.

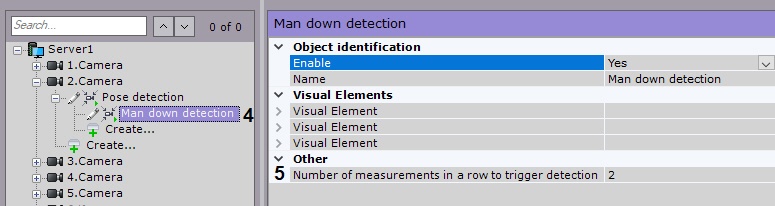

  6. Select the desired detection tool (4).

  7. Set the minimum number of frames with a human in a pose of interest for triggering the tool (5).

    Note

    The default values (2 frames and 1000 milliseconds) indicate that the tool will analyze one frame every second. When a pose is detected in 2 consequent frames, the tool will trigger.

    Note

    This parameter is not used for masking settings.

  8. Click Apply.
