Documentation for Axxon Next 4.4.6. Documentation for other versions of Axxon Next is available too.

Previous page Configure Facial Recognition  Configuring real-time facial recognition Next page

On page:

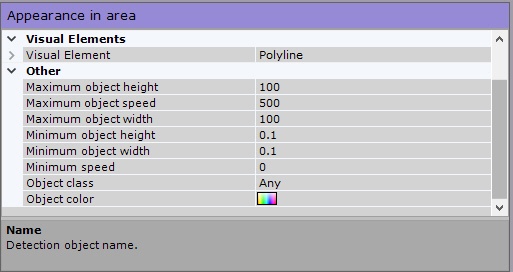

Appearance in area

To configure the detection tool:

  1. Select an object.

  2. Configure parameters for the captured face (just as with detected objects, see Setting up objects to be detected (target objects)).

    Attention!

    Select the Object class: Any or Face.

    Note

    Face color is not detected during Facial recognition, so there are no color settings.

  3. Set an area inside FoV for detection. This is similar to the situation analysis configuration (see Configuring the Detection Zone).
  4. Click the Apply button.

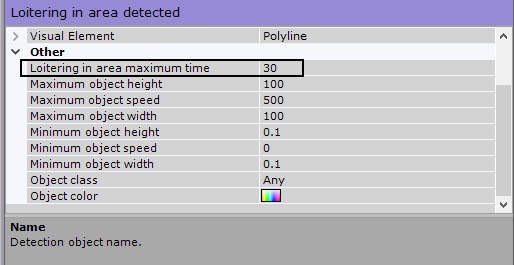

Loitering in area

To configure the detection tool:

  1. Select an object.

  2. Configure parameters for the captured face (just as with detected objects, see Setting up objects to be detected (target objects)).

    Attention!

    Select the Object class: Any or Face.

    Note

    Face color is not detected during Facial recognition, so there are no color settings.

  3. Set the maximum time an object can stay in the zone. When the maximum time is exceeded, the detection tool is triggered. This value should be in the range [0, 3600].
  4. Set an area inside FoV for detection. This is similar to the situation analysis configuration (see Configuring the Detection Zone).
  5. Click the Apply button

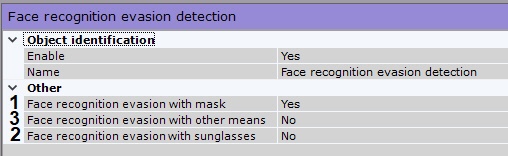

Face recognition evasion detection

To configure the detection tool:

  1. Select an object.
  2. If you need to detect individuals wearing masks, select Yes for the corresponding parameter (1).
  3. If you need to detect individuals wearing dark glasses, select Yes for the corresponding parameter (2).
  4. If you need to detect individuals using other means of face recognition evasion (moustache, beard, face covers of any kind), select Yes for the corresponding parameter (3).
  5. Click the Apply button.
