To view the camera information, swipe up on the screen. As a result, the window with the video moves up and the following sections become available depending on the connected Server:

Axxon Next ServerIntellect Server

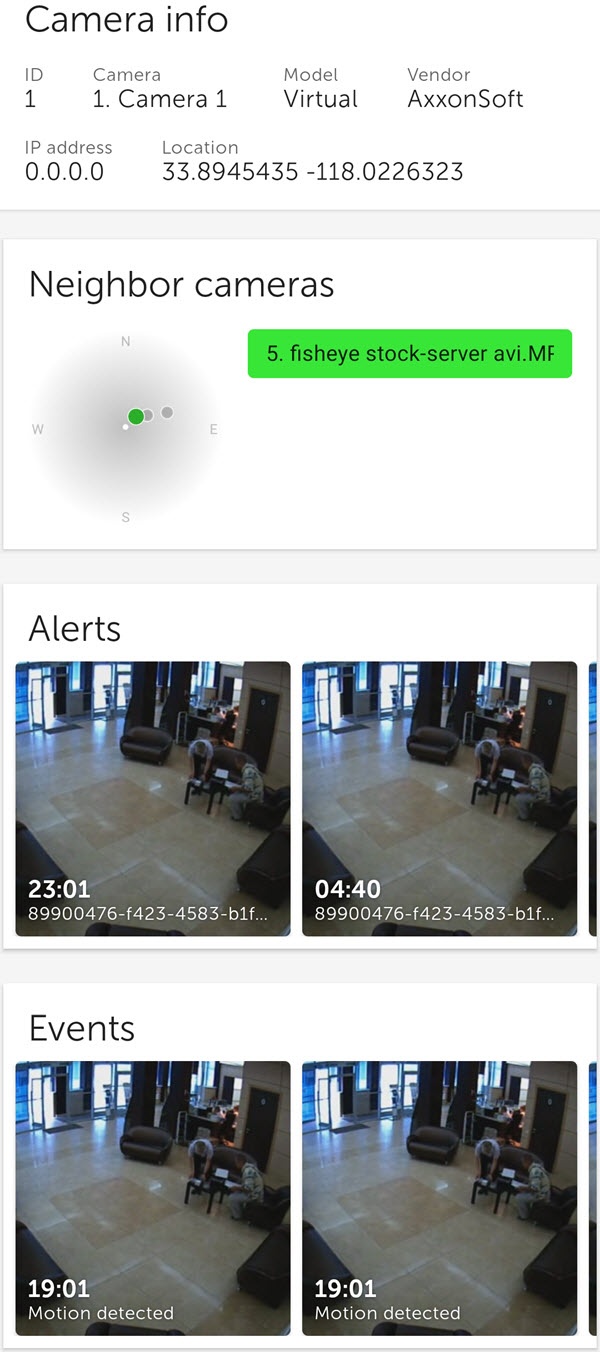

The following information is displayed the Camera info section:

Camera ID;

Camera name;

Camera model;

Vendor;

IP address;

Camera location.

The Actions section displays the macros available for this camera (see Executing macros in AxxonNet client on Android OS).

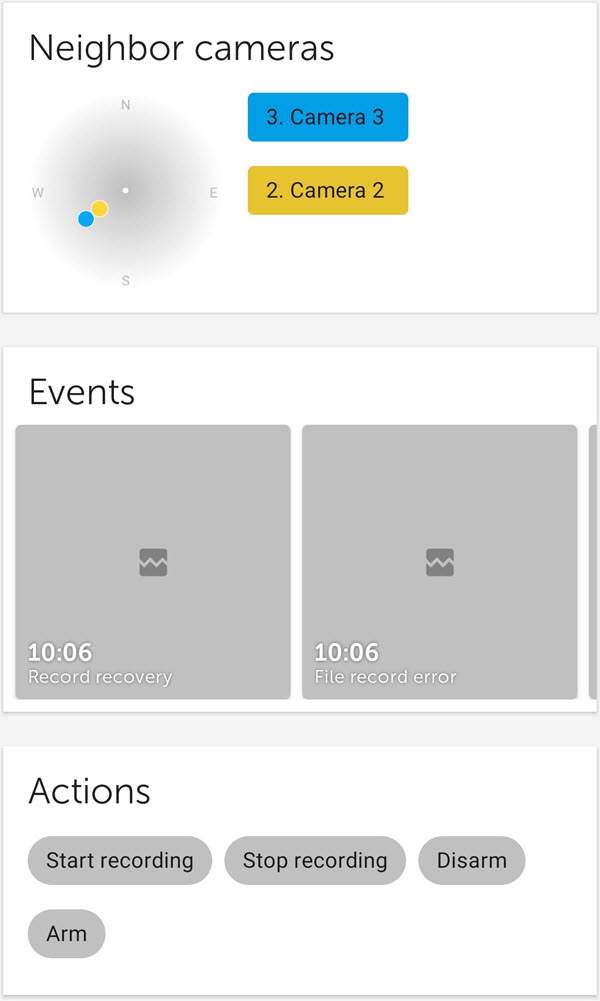

The nearest cameras are displayed in the Nearby cameras section:

Note

The dot color on the micro-map corresponds to the camera color in the list of nearby cameras. Gray dots on the micro-map indicate other cameras which get into the field of view.

The Events section displays the last 60 events for this camera. When you scroll through the list of events, the new events will be loaded by a group of 20 events.

When you select the corresponding event, the event panel will be displayed (see Viewing the event in AxxonNet client on Android OS).

The Alerts section displays the last 60 alarms for this camera. When you scroll through the list of alarms, the new alarms will be loaded by a group of 20 alarms.

When you select the alarm, the event panel will be displayed (see Viewing the event in AxxonNet client on Android OS).


Note

The Events and Alerts sections are not displayed if the Events and alerts in onecam checkbox is not set in the settings (see Configuring debugging in AxxonNet client on Android OS).
