To connect the Client to the Server behind NAT, do the following:

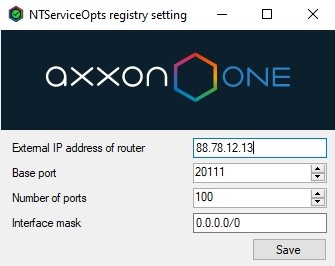

  1. On the Server, set the port range of ports for operation and the router's public IP address (see Network settings utility). By default, the base port is 20111, and the port range is 20111-20210 (see Ports used by the Axxon One Software Package).

    Attention!

    The router's public IP address should be static.

  2. On the router, forward the specified Server ports and the gRPC API 20109 port.

  3. Launch the Client and specify the router's external IP address and the Server's external base port in the connection settings (see Axxon One 클라이언트 시작).

    Attention!

    When connecting the Client from an external network, only those Servers that have access to the external network will be available in the Axxon domain configuration (see Consolidating the Servers from different networks into Axxon domain).

    Attention!

    In some cases, in security systems with a complex architecture (NAT, VPN), the Client may not receive events from the Server. To fix this, it is necessary to create the system variable NGP_POLL_EVENTS and set the 1 value to it (see Appendix 10. Creating system variable).

    Attention!

    In a failover system, it is not possible to connect to the node that is behind NAT (see 노드 연결 및 Axxon 도메인 구성).

Example:

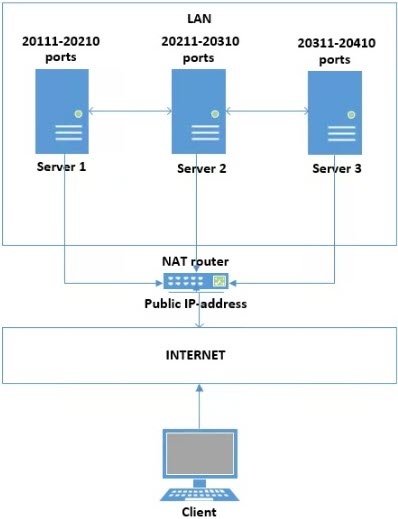

To connect the Client to the Servers behind NAT, do the following:

  1. On Server 1, set the port range 20111-20210 and the public IP address of the router.
  2. On Server 2, set the port range 20211-20310 and the public IP address of the router.
  3. On Server 3, set the port range 20311-20410 and the public IP address of the router.
  4. On the router, configure the forwarding of:
    1. the router ports 20111-20210 to the internal IP address of Server 1 and ports 20111-20210;
    2. the router ports 20211-20310 to the internal IP address of Server 2 and ports 20211-20310;
    3. the router ports 20311-20410 to the internal IP address of Server 3 and ports 20311-20410;
    4. the gRPC API 20109 port (always static) to the internal IP addresses of the Server 1, 2 and 3.
  5. When connecting the Client, enter the router's public IP address and port:
    1. port 20111 to connect to Server 1;
    2. port 20211 to connect to Server 2;
    3. port 20311 to connect to Server 3.
