Creating and configuring roles

A role is intended for assigning a group of users individual rights and permissions for administration, management and/or monitoring of individual components of Axxon One.

To register a new role, perform the following:

At the end of the list of system roles, click the Create link.

The new role is added in the system, with its properties displayed on the right side.

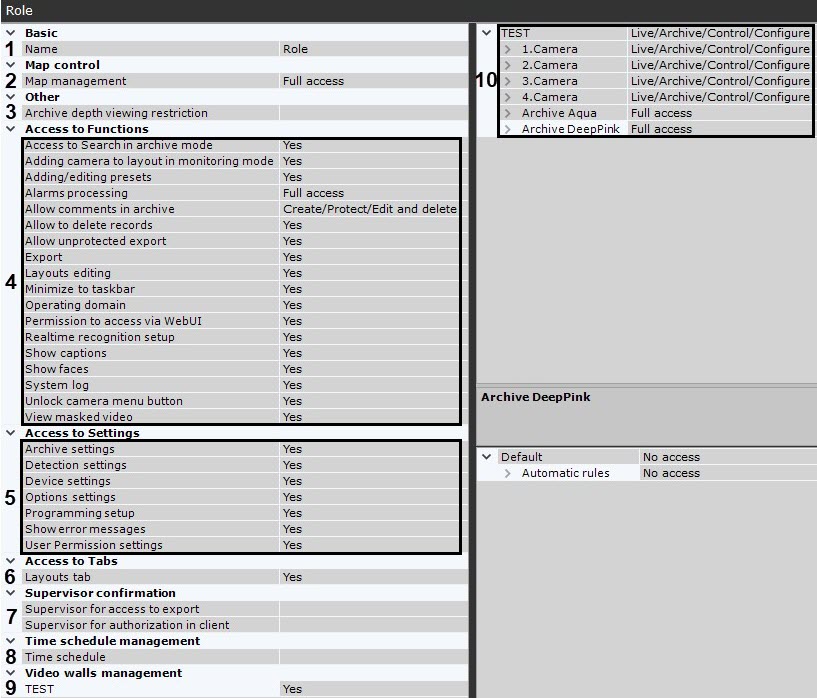

Enter a name for the role in the corresponding field (1).
Select priority of PTZ cameras control for users with the current role.
Select priority of map access for users with the current role (2).
Access level
Description
View only
You can only view maps
View/move/scale
You can move and scale maps
Full access
All options available
If you need to limit access of users of a given role to all system archives, you can specify the retention time (archive depth) limit in the Archive depth viewing restriction field (3). If no limit is set, users may access the entire Video Footage.

Set access permissions for Axxon One features (4). Access can be restricted to such features as:

Archive search (see Video surveillance in Archive Search mode).
Adding a camera to a layout in live video mode (see Adding cameras to cells).
Adding and editing presets for PTZ cameras (see Creating and editing presets).
Alarms Management (see Video surveillance in Alarm Management mode).
1. No access: users have no access to alarm videos.
2. View only: users can view alarm videos but they can't evaluate alarms.
3. Full access: users can view alarm videos and evaluate alarms.

Creating comments (see Operator comments) and protected records in Video Footage (see Protecting video footage from FIFO overwriting).

Access level	Description
No access	No comments allowed
Create	Add comments to archives
Create / Protect	Add comments to archives, create protected records
Create / Protect / Edit / Delete	Add comments to archives, create and edit protected records

Removing videos from the footage archive (see Delete a part of an archive).
Allow unprotected export (see Frame export, Standard video export). Set No to require setting a password for exported images and video.
Exporting snapshots and video recordings (see Exporting Frames and Video Recordings).
Editing layouts (see Configuring Layouts).
Minimizing the Client to the system tray (see Interface of the Axxon One Software Package).
Managing an Axxon domain (see Axxon Domain operations).
Access to the Web server (see Working with Axxon One Through the Web-Client).
Displaying captions (see Viewing titles from POS terminals).
Show faces (see 얼굴 마스킹).
Viewing the system log (see The System Log).
Context menu of a video camera in a viewing tile (see Viewing Tile Context Menu).
View masked video (see 영상에서 프라이버시 마스킹 설정).

Configure access rights to the Settings tabs and to system error messages (5).
Attention!
If you set the User Permission Settings parameter to Device access rights only, all users of the given role will be permitted to change only access rights to connected devices.
Note
Error messages are displayed in real time in the Layouts interface
Set access permissions for Layouts in Axxon One (6). This setting is related to both primary and web clients.
Set the parameters to apply the four-eyes principle (7):
1. If the administrator has to confirm the launch of export for users of this role, select the appropriate role in the Supervisor for access to export list.
2. If the administrator has to confirm the login of users of this role, select the corresponding role in the Supervisor for authorization in client list.
If you need to grant the users in this role permissions only for a certain period of time, select a Time schedule (8) from the list. These users will not be able to use their permissions outside of the selected time schedule.
Configure rights to manage connected Clients' monitors by setting permissions for each Server on an Axxon domain (9). A user who has management permissions for the monitors of a particular Server can manage monitors of any Client connected to that Server.

Set permissions for access to hardware and archives on an Axxon domain (10).

Device	Access permissions	Description
Video camera	No access	You cannot access the device.
	Archive only	You can only view video footage in archive.
	Live in Armed mode	You can view video from the camera only when the camera is armed.
	Live	You can live video from the camera. Other functions and device configuration are not available.
	Live/Archive	You can view live and recorded video from the camera. You cannot arm/disarm/configure the camera.
	Live/Archive/Control	All functions available. You cannot configure the device.
	Live/Archive/Control/Configure	All functions and settings available.
Microphone	No access	The user is unable to listen to live sound from the video camera. The user is unable to listen to sound recordings from the archive.
	Live Audio	The user is able to listen to live sound from the video camera (the microphone must be turned on). The user is unable to listen to sound recordings from the archive.
	Live Audio and Archive	All functions are accessible.
PTZ	No access	The user cannot control the PTZ device.
	Minimum level	The user can control the PTZ device with the corresponding priority (see Controlling a PTZ Camera).
	Low level
	Medium level
	High level
	Maximum level
Archive	No access	Access is not provided to this archive.
Archive	Full access	Archive is available for all functions.

You can configure group rights for accessing devices and archives of a particular Server. To do so, select an access level for the Server object. Depending on the level that is chosen, particular access levels are automatically configured for the devices and archives of the relevant Server (see table).

Server access level	Device/archive	Device/archive access level
Custom	-	Access levels for devices and archives are set manually.
No access	-	No access to devices and archives.
Archive Only	Video camera	Archive only.
	Microphone	Live Audio and Archive.
	PTZ	Medium level.
	Archive	Full access.
Live in Armed Mode	Video camera	You can view armed cameras.
	Microphone	Live Audio.
	PTZ	Medium level.
	Archive	No access.
Live	Video camera	You can view live video.
	Microphone	Live Audio.
	PTZ	Medium level.
	Archive	No access.
Live/Archive	Video camera	You can view live and recorded video.
	Microphone	Live Audio and Archive.
	PTZ	Medium level.
	Archive	Full access.
Live/Archive/Control	Video camera	All functions. Settings not available.
	Microphone	Live Audio and Archive.
	PTZ	Medium level.
	Archive	Full access.
Live/Archive/Control/Configure	Video camera	All functions + settings available.
	Microphone	Live Audio and Archive.
	PTZ	Maximum level.
	Archive	Full access.

Select the appropriate access level to set the ability to manually run all or some macros (see Configuring Macros) from the Layouts interface:
Attention!
By default, created macros are available only to users from the admin group.
Users outside the admin group can create macros if they have the permissions to create them, but they cannot use them until they have the permissions to use them.
Click the Apply button to save the role.

The new role has now been created.

You can copy Roles. To do it, follow the steps below:

Select the role to copy.
Click Create.

This creates a new identical role.

Note

To create an empty user role with no parameters specified, select the Roles common group, and click Create.

To delete a role, perform the following:

Select the role to delete.
Click Delete. 
Note
You cannot delete a role if the user through which you logged into the system belongs to that role.
Click the Apply button.

The role has now been deleted. All users under this role will also be deleted.
