The advanced Archive Navigation Panel is displayed in the lower part of the screen in the Archive or Archive Search modes.

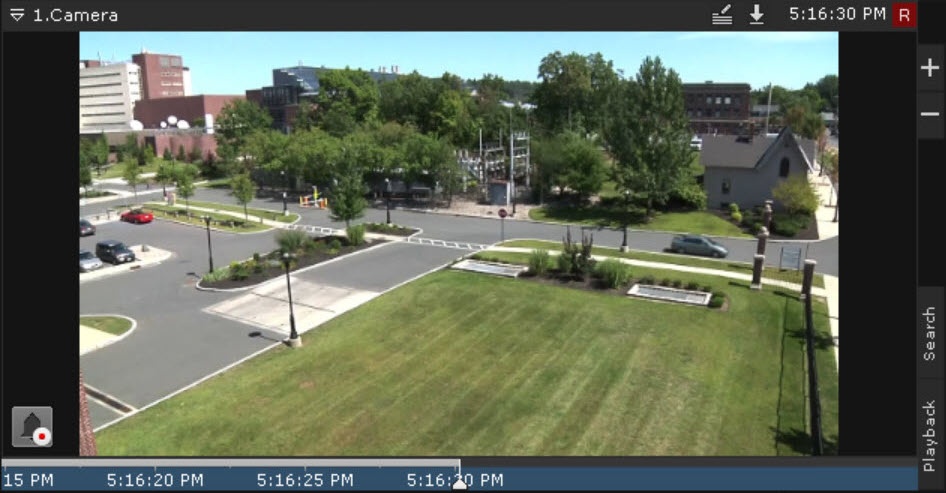

When you click a live camera window, the advanced Navigation Panel shows only the timeline and the Archive selection button.

Note

If the camera is not linked to an archive, the panel is unavailable.

In the Live mode, if you click the timeline, you go to the Archive mode.

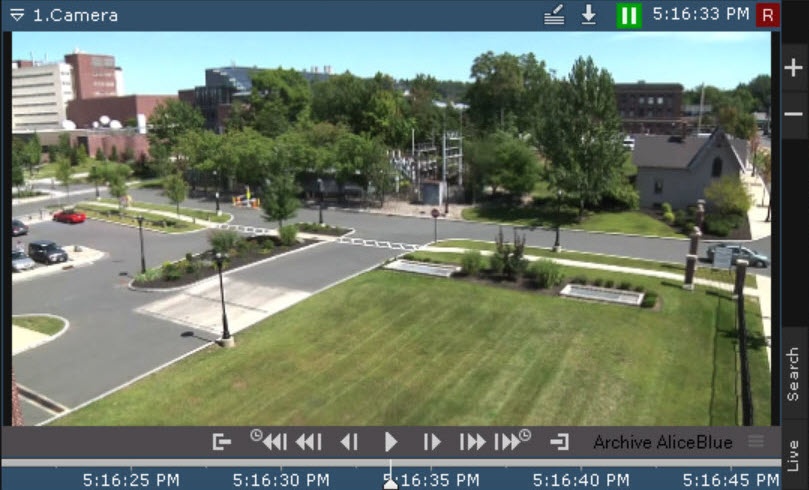

The advanced Archive Navigation Panel includes the following components:

  1. Timeline.
  2. Playback control buttons.

  3. Archive selection button.

  4. Tabs for compressed and standard Archive playback modes.

Tracks are marked in different colors depending on the archive status:

Condition

Track color

Archive absent (1)

Black

Archive present (2)

White

Archive present, input or detection tool activated (no alarm) (3)

Blue

Archive present, alarm active (4)

Red

Additionally, the timeline on the advanced Archive Navigation Panel features missing footage tags . A tag is displayed when footage is missing for over 40% of the currently visible part of the timeline. Depending on the duration of the missing footage, tags can have different thickness:

  1. —less than one hour.
  2. —from 1 to 24 hours.
  3. —more than 24 hours.

The duration of missing footage is indicated near the tag.

The date of the first recording in the archive is displayed near the left edge of the archive stripe.

Note

In this case, the Archive period to the left of the marker means that the camera was not linked to thе archive.

The playback control buttons on the advanced Navigation Panel are the same as the buttons on the Playback Panel (see The Playback Panel). The advanced Archive Navigation Panel also has the buttons to jump forward and back by N seconds: and .

N is a step value, 30 sec by default. If you press Ctrl + once, you increase the jump step by 30 sec, if you hit Ctrl + , you cut the jump step by 30 sec. The maximum step value is 300 seconds.

The advanced Archive Navigation Panel is used to position the archive at a specific time, control playback, and switch to compressed archive playback mode.

The advanced Archive Navigation Panel works completely in sync with the Playback Panel and the timeline:

  1. The playback mode selected on the advanced Navigation Panel is displayed on the Playback Panel.
  2. The playback speed that is set on the Playback Panel is used as the playback speed when playback is restarted on the advanced Navigation Panel, and vice versa.
  3. Any movement through the main timeline is duplicated onto the timeline of the advanced Navigation Panel.
