Setting a search interval

Setting a search interval is a common procedure for all types of the archive search.

By default, the search spans across the part of the archive that is displayed on the timeline (see Navigating using the Timeline).

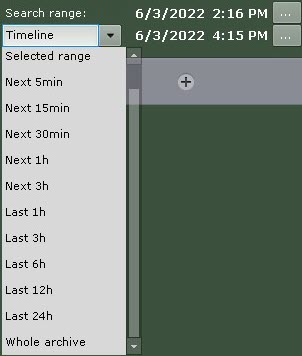

To change the search interval, select the required value from the Search range drop-down list.

Search range	Description
Timeline	The search spans across the part of the archive that is displayed on the timeline. The interval can also be set manually with the upper and bottom buttons
Selected range	The search is performed within the interval currently selected on the timeline. You can set the interval using the and buttons
Next 5min/15min/30min/1h/3h	The search is performed within the following interval [specified start of the interval; specified start of the interval + 5min/15min/30min/1h/3h]. To set the beginning of the interval, click the button
Last 1h/3h/6h/12h/24h	The search is performed within the last hour (or 3, 6, 12, 24 hours) of the archive
Whole archive	The search is performed in the whole archive
